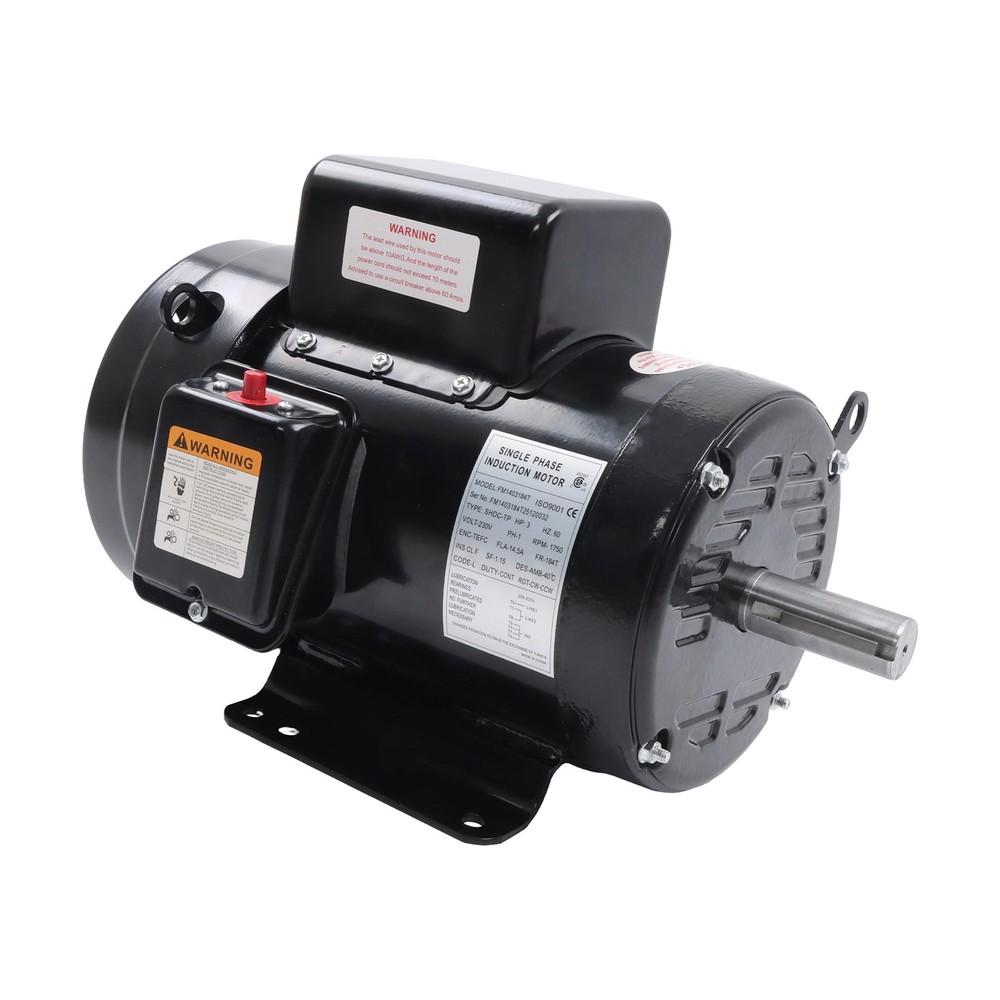

Agricultural Motor 3HP Single-Phase 1800RPM 184T TEFC 208/230V 60Hz 1-1/8In

USD 379.16 USD

SKU: s0kgT9ko

Brand: ALL-CARB

GTIN: Does not apply

Condition: New

Tags: 1 1/8 in 1 Year 1.15 13.5 1800 1800 RPM 184T 208 V, 230 V 60 Hz ALL-CARB Base-Mounted Black H (Max 356°F) Heavy Duty IP55 Keyed Not Protected Reversible Single Phase

Categories: Metalworking Equipment

Specifications

Brand	ALL-CARB
Shaft Diameter	1 1/8 in
IP Rating	IP55
AC Phase	Single Phase
Service Factor	1.15
AC Frequency Rating	60 Hz
Reversible/Non-Reversible	Reversible
Shaft Type	Keyed
Protection Against Liquids	Not Protected
Full Load Amps	13.5
Warranty	1 Year
Design	Heavy Duty
Color	Black
Base RPM	1800
Insulation Class	H (Max 356°F)
Mounting Type	Base-Mounted
IEC Frame Size	184T
Nominal Rated Input Voltage	208 V, 230 V

Agricultural Motor 3HP Single-Phase 1800RPM 184T TEFC 208/230V 60Hz 1-1/8In Specification: 3 Horsepower Single Phase TEFC / IP55 Fully Enclosed Poles: 4 184T Frame Service Factor 1.15 Class F Insulation 208-230 Volt 1800 RPM Fan Cooled Shaft Length: Approximately 2 7/8" Keyed 1 1/8" Diameter Shaft Current: AC Full Load Amps: 12.9 60 HZ Shaft Material: 1045 Carbon Steel Max Temp: 40 Degrees C Steel Housing Fast Heat Dissipation Two Rotation CW/CCW .

Agricultural Motor 3HP Single-Phase 1800RPM 184T TEFC 208/230V 60Hz 1-1/8In

Specifications
