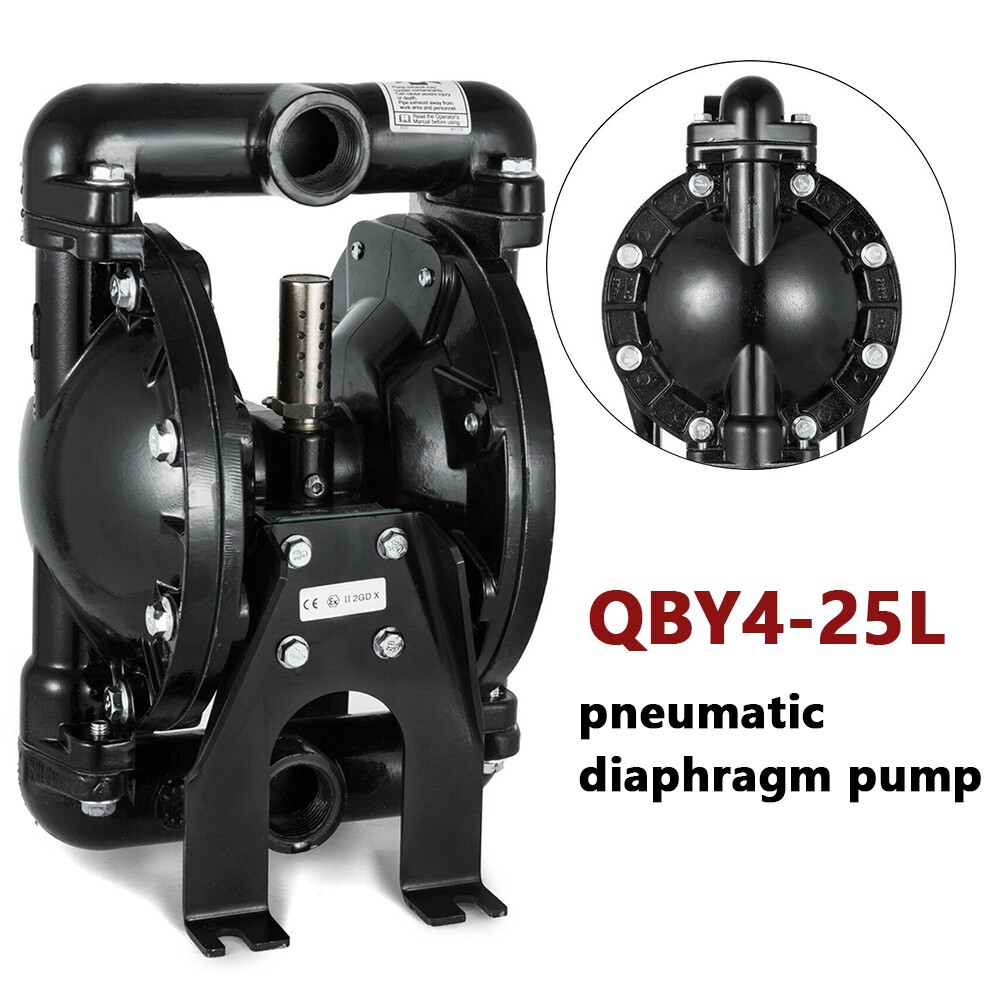

Air-Operated Double Diaphragm Pump 1″ Inlet Outlet Petroleum Fluids 35GPM 120PSI
Specifications
| StartPrice | 170.64432 |
| Brand | Unbranded |
| Product | Diaphragm pump |
| Type | Double diaphragm |
| Operation Type | Air-operated |
| Model | QBY4-25L |
| Body Material | Aluminum |
| Inlet Port | 1 inch (25 mm) |
| Outlet Port | 1 inch (25 mm) |
| Air Inlet Size | NPT 1/2 inch (12.7 mm) |
| Average Air Consumption | 38 CFM |
| Max Flow Rate | 9 m3/h (35 GPM) |
| Suction | 0-5 m (0-16.4 ft) |
| Max Suspended Solids | 3 mm (1/8 inch) |
| Max Head | 84 m (275.59 ft) |
| Max PSI | 120 psi |
| Max Temp | Max Temp |
| Self-Priming Dry | 3 m (10 ft) |
| Self-Priming Wet | 4.6 m (15 ft) |
| Manifold Connection | Single |
| Valve Type | Ball |
| Ball Material | Acetal |
| Check Seat Material | Check Seat Material |
| Diaphragm Material | Nitrile |
Product Description A diaphragm pump (also known as a Membrane pump) is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm (check valve, butterfly valves, flap valves, or any other form of shut-off valves) to pump a fluid. The listing is about 35 GPM Air-Operated Double Diaphragm Pump with 1 Inch Inlet And Outlet. This powerful air-operated double diaphragm pump QBY4-25L features a 1in. inlet and 1in. outlet capable of pumping up to 35 gallons/min at temperatures up to 150 degrees F. Application Perfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil. Warning! Can not use for corro.
