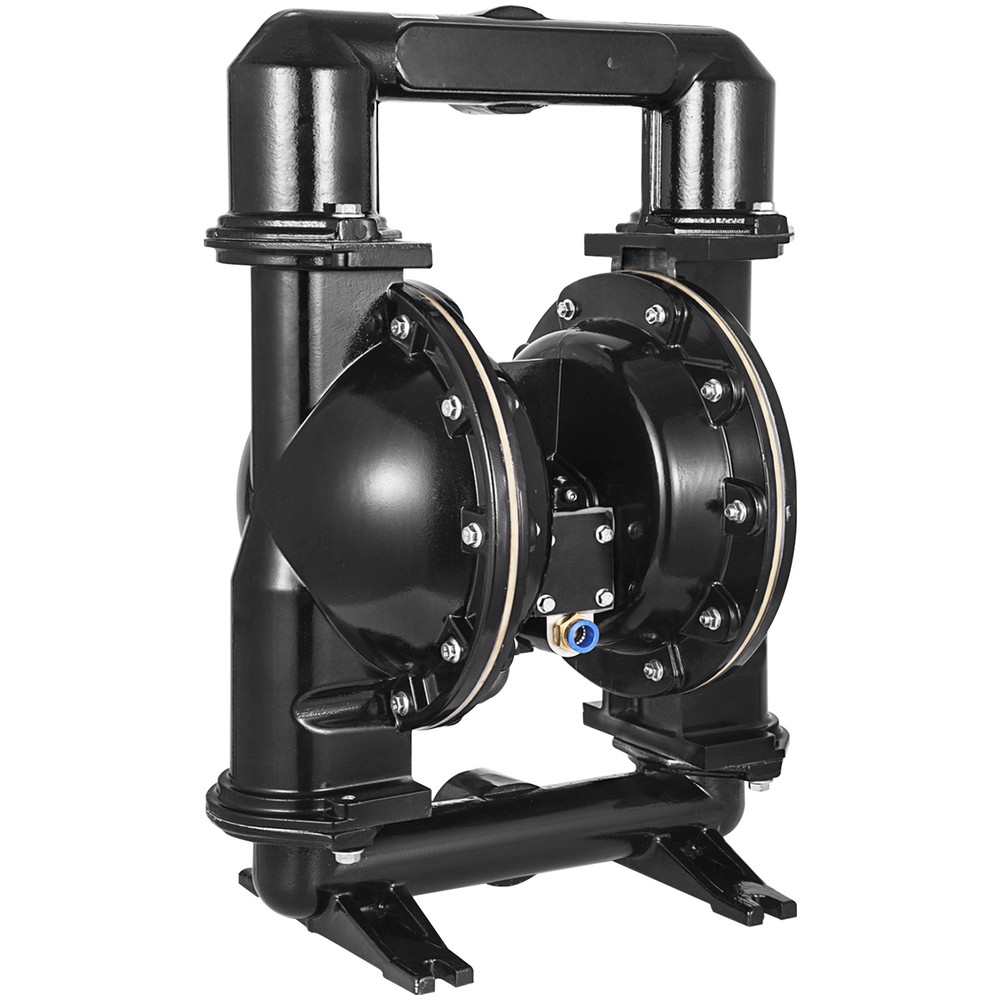

Air-Operated Double Diaphragm Pump 2″ Inlet Outlet Petroleum Fluid 140GPM
USD 475.99 USD
Specifications
| Brand | Unbranded |
| MPN | YBGMBQBY4-50L0001 |
| Type | Diaphragm pump |
| Suction | 0-10 m (0-32.8 ft) |
| Outlet Port | 2 inch (50 mm) |
| Ball Material | Acetal |
| Inlet Port | 2 inch (50 mm) |
| Air Inlet Size | NPT 1/2 inch (12.7 mm) |
| Manifold Connection | Single |
| Diaphragm Material | Nitrile |
| Max Flow Rate | 75 GPM |
| Self-Priming Dry | 3 m (10 ft) |
| Body Material | Aluminum Alloy |
| Max Suspended Solids | 3 mm (1/8 inch) |
| Valve Type | Ball |
| Model | QBY4-50L |
| Self-Priming Wet | 4.6 m (15 ft) |
| Check Seat Material | Polypropylene |
| Max PSI | 120 psi |
| Average Air Consumption | 38 CFM |
| Max Head | 84 m (275.59 ft) |
