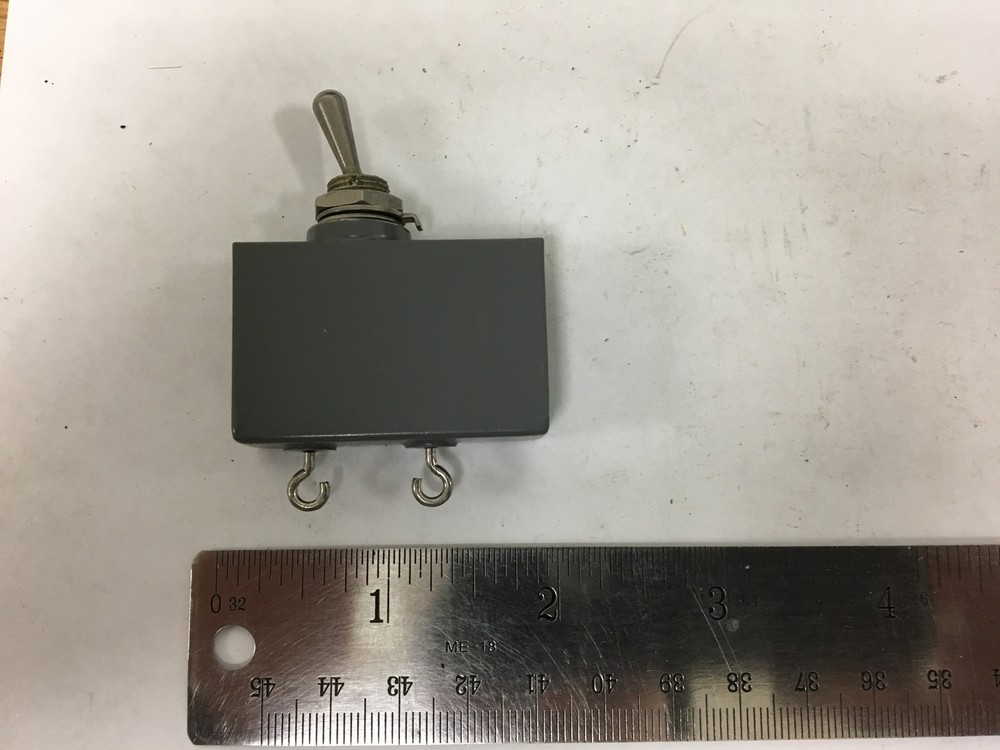

Airpax 520-A-501 Circuit Breaker .50A 120V 400 Ohm
Specifications
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Amperage Rating | 0.5 |
| Brand | AIRPAX |
| MPN | 520-A-501 |
| Voltage Rating | 120 |
| Country/Region Of Manufacture | United States |
Airpax 520-A-501 Circuit Breaker .50A 120V 400 Ohm NEW OLD STOCK POLE QUANTITY 1 MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE 500.0 MILLIAMPERES AC SINGLE LOCATION OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS 120.0 AC SINGLE LOCATION FREQUENCY IN HERTZ 400.0 SINGLE LOCATION MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS 500.0 AC SINGLE LOCATION CIRCUIT PROTECTION TYPE OVERCURRENT SINGLE LOCATION TRIP RELEASE METHOD MAGNETIC SINGLE LOCATION INTERNAL TRIP RELEASE CONFIGURATION SERIES TRIP SINGLE LOCATION TRIP RELEASE CHARACTERISTIC TIME DELAY SINGLE LOCATION TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT 0.150 MINIMUM AT 200 PCT AND 0.800 MAXIMUM AT 200 PCT SINGLE LOCATION ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT 125.0 SINGLE LOCATION RESET METHOD MANUAL MAIN CONTACT TRIPPING MECHANISM TYPE TRIP FREE BODY STYLE 2A SINGLE POLE TYPE BUSHING LENGTH 0.315 INCHES NOMINAL BODY LENGTH 1.750 INCHES MAXIMUM BODY WIDTH 0.625 INCHES MAXIMUM CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH 0.687 INCHES NOMINAL MOUNTING SURFACE TO TERMINAL END DISTANCE 1.125 INCHES NOMINAL CASE MATERIAL METAL MOUNTING FACILITY TYPE AND QUANTITY 1 THREADED BUSHING THREAD SERIES DESIGNATOR UNEF NOMINAL THREAD SIZE 0.375 INCHES THREAD QUANTITY PER INCH 32 MANUAL ACTUATOR TYPE AND QUANTITY 1 TOGGLE ACTUATOR FUNCTION TRIP-RESET ACTUATOR POSITION DESIGNATION AT POLE ONE TERMINAL TYPE AND QUANTITY 2 WIRE HOOK INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED HERMETICALLY SEALED III ARC QUENCHING METHOD MAGNETIC BLOWOUT III STORAGE TYPE GENERAL PURPOSE WAREHOUSE III UNPACKAGED UNIT WEIGHT 4.300 OUNCES III FRAGILITY FACTOR MODERATELY RUGGED LOT 8609
