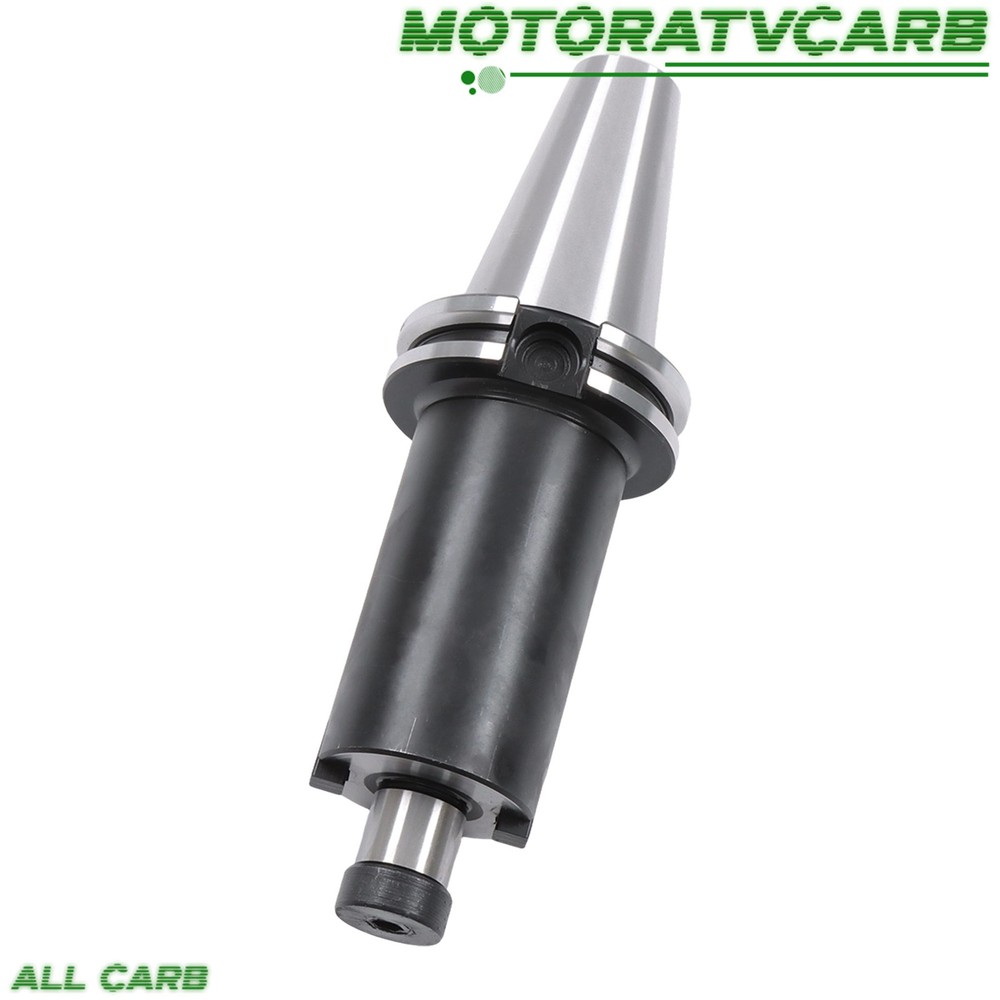

ALL-CARB CAT40 3/4×4″ Shell Face Mill Tool Holder .0002″ Balanced G6.3 15000RPM

USD 54.09 USD

SKU: 2no8cfjH

Brand: ALL-CARB

MPN: MOT5409074

GTIN: Does not apply

Condition: New

Tags: 0.0002" 0.31 0.56 1 Year 1.75 3/4" 5/8×11UNC ALL-CARB CAT40 Center Cutting FACE MILL HOLDER Flat End G6.3 15000 Hardened Steel MOT5409074 Silver Unfinished United States

Categories: Cleaning & Janitorial Supplies

Specifications

Country Of Origin	United States
Brand	ALL-CARB
MPN	MOT5409074
Max. RPM Balanced To	G6.3 15000
TIR (Inch)	0.0002
Model	CAT40
Warranty	1 Year
Material	Hardened Steel
Bore Dia. In Shell Mill	3/4"
Finish Type	Unfinished
TOOL HOLDER CATEGORY	Face Mill Holder
End Cut Type	Flat End
Color	Silver
Cut Type	Center Cutting
Drawbar Thread Size	5/8×11UNC
Nose Diameter	1.75
Arbor Diameter	3/4
Arbor Screw Diameter	0.56
Key Width For Face Mill Keyway	0.31

Caution: Minor differences in product design may result in different model numbers. Please check the picture carefully to see if it matches your product. If you are not sure if this model is right for you, please feel free to contact us. Features: Dynamically balanced to 15,000RPM at G6.3 at all location for consistent balance. H6 arbor tolerance to improve cutter chattering and overall cutting tool life. T.I.R. 0.0002" measured from CAT40 taper to face and arbor. .

ALL-CARB CAT40 3/4×4″ Shell Face Mill Tool Holder .0002″ Balanced G6.3 15000RPM
