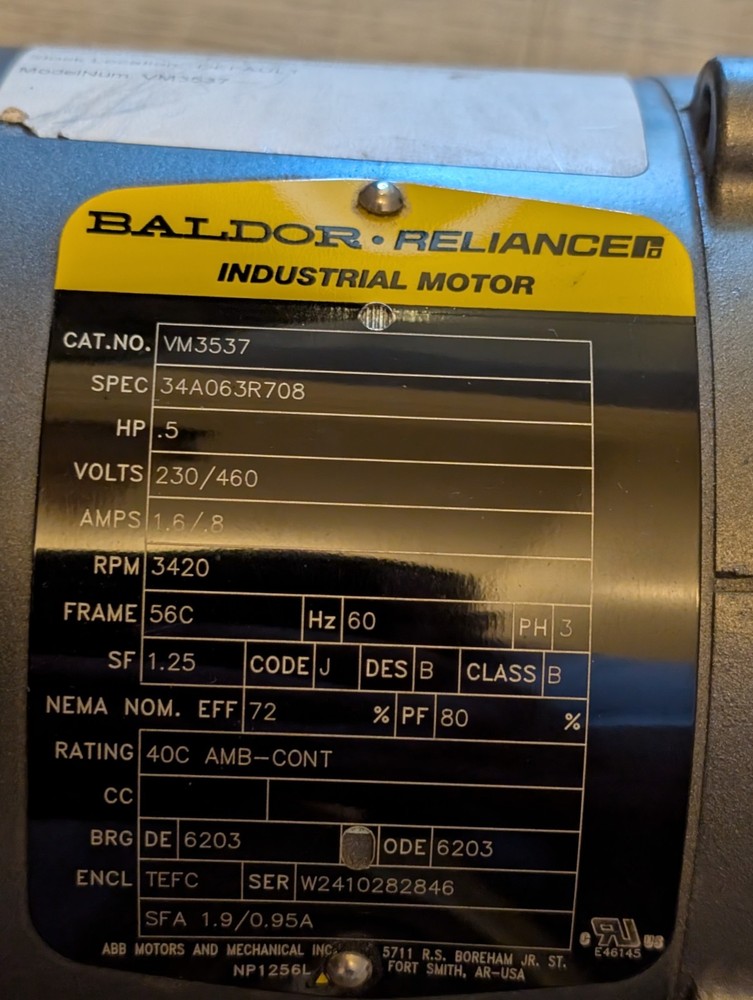

Baldor Reliance VM3537 0.5HP 230/460V 3PH TEFC Motor 3420RPM 56C
USD 275.00 USD
Specifications
| Actual Rated Input Voltage | 230/460 |
| Full Load Amps | 1.6/.8 |
| Rated Load (HP) | 0.5 |
| AC Frequency Rating | 60 Hz |
| Base RPM | 3420 |
| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| MPN | VM3537 |
| Insulation Class | B (Max 266°F) |
| Mounting Type | Face-Mounted |
| Brand | Baldor Reliance |
| Service Factor | 1.25 |
| Model | VM3537 |
| Nominal Rated Input Voltage | 230 V, 460 V |
| AC Phase | Three Phase |
Baldor Reliance VM3537 0.5HP 230/460V 3PH TEFC Motor 3420RPM 56C
