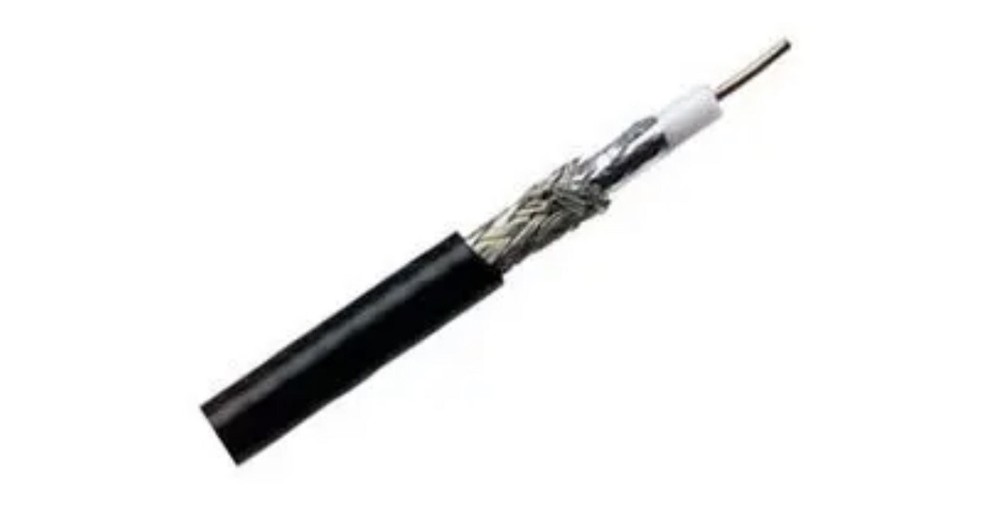

BELDEN 9116 0101000 Coaxial Cable, CATV, RG6, 18 AWG, 75 ohm, 1000 ft
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Beldon |
| Sheath Color | Black |
| Item Length | 1000 ft |
The 9116 0101000 is a Coaxial Cable with 18AWG solid bare copper-covered steel conductor and a gas-injected foam polyethylene insulation. This series 6 9116P plenum coax-CATV cable comes with a black PVC jacket and Duobond® bonded aluminium foil-polyester tape shield and aluminium braid shield (60% coverage). The Duobond® is essentially the same construction as Duofoil® (a laminated shielding tape consisting of aluminium foil), but with an extra layer of heat-sensitive adhesive bonding the foil shield to the dielectric core. This foil shield provides 100% coverage and ensures maximum shield protection. The coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, this cable is used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna. 560.473N Maximum recommended pulling tension 0.318257µH/m Nominal inductance 83% Nominal velocity of propagation 91.868Ω/km at 20°C Nominal conductor DC resistance (DCR) -40 to 80°C Operating temperature range
