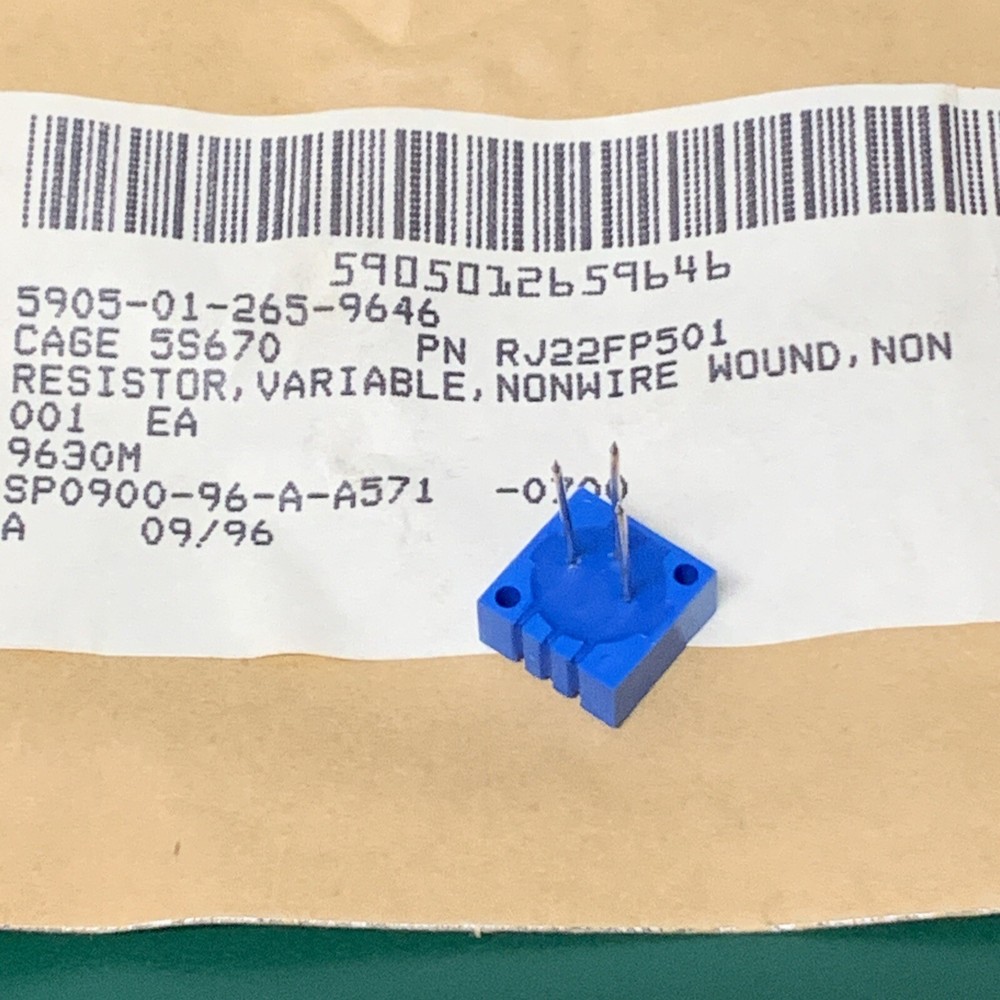

BOURNS RJ22FP501 1/2 Inch Square Trimpot 500 Ohm 10% 0.5 W 100 ppm/°C
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Bourns |
| MPN | RJ22FP501 |
BOURNS RJ22FP501 1/2 Inch Square Trimpot 500 Ohm 10% 0.5 W 100 ppm/°C LOT 35552 B84A NEW OLD STOCK Technical Data | NSN 5905-01-265-9646 Characteristic Specifications SECTION QUANTITY 1 ELECTRICAL RESISTANCE PER SECTION 500.0 OHMS SINGLE SECTION RESISTANCE TOLERANCE PER SECTION IN PERCENT -10.0 TO 10.0 SINGLE SECTION STANDARD TAPER CURVE PER SECTION A SINGLE SECTION TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS -100.0 TO 100.0 SINGLE SECTION POWER DISSIPATION RATING PER SECTION IN WATTS 0.5 FREE AIR SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER 85.0 SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER 150.0 SINGLE SECTION BODY STYLE 27B RECTANGULAR BODY LENGTH 0.500 INCHES NOMINAL BODY WIDTH 0.235 INCHES NOMINAL BODY HEIGHT 0.500 INCHES NOMINAL ACTUATOR TYPE SINGLE SHAFT SHAFT STYLE 3C ROUND, SLOTTED SHAFT DIAMETER 0.078 INCHES NOMINAL SHAFT LENGTH 0.035 INCHES NOMINAL ROTARY ACTUATOR TRAVEL IN ANGULAR DEG 7200.0 MINIMUM AND 16200.0 MAXIMUM ACTUATOR TRAVEL CONTROL FEATURE CLUTCH EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION 7200.0 MINIMUM AND 16200.0 MAXIMUM MOUNTING METHOD TERMINAL TERMINAL TYPE AND QUANTITY 3 PIN CENTER TO CENTER DISTANCE BETWEEN TERMINALS 0.200 INCHES NOMINAL CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL 0.100 INCHES NOMINAL TERMINAL LENGTH 0.172 INCHES NOMINAL TERMINAL LOCATION LEFT ADJACENT SIDE TWO ROWS CENTER TO CENTER DISTANCE BETWEEN TERMINAL ROWS 0.100 INCHES NOMINAL RELIABILITY INDICATOR NOT ESTABLISHED TEST DATA DOCUMENT 81349-MIL-R-22097 SPECIFICATION SPECIFICATION/STANDARD DATA 81349-MIL-R-22097/3 GOVERNMENT SPECIFICATION MANUFACTURERS CODE 81349 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-R-22097/3 MANUFACTURERS CODE 81349 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE RJ22FP501
