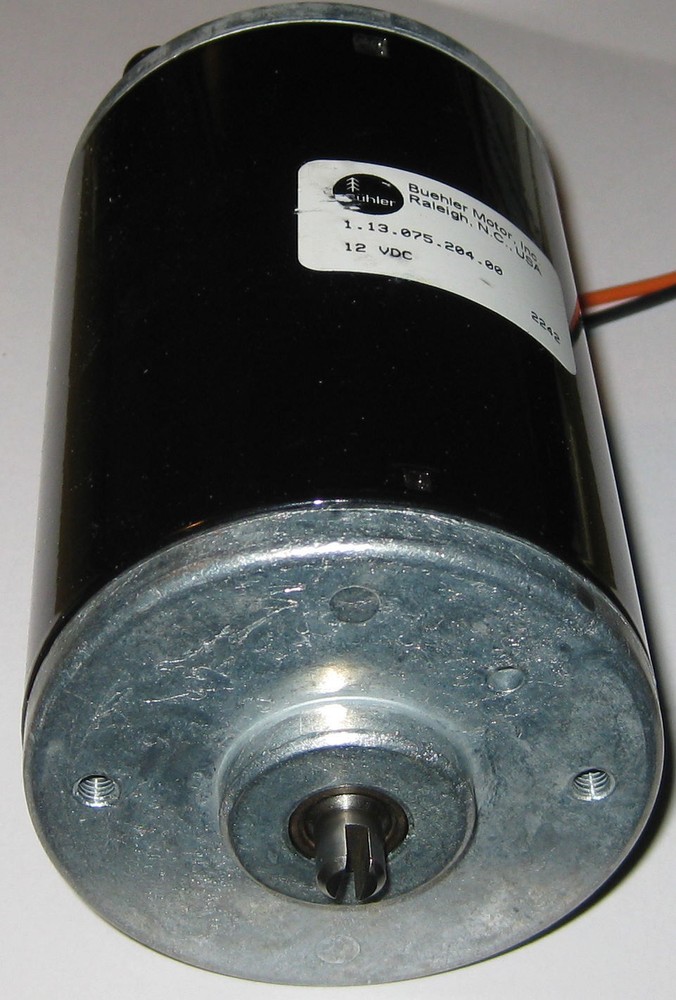

Buehler 12 VDC Large Hobby Electric Motor – 115 Watt – 6000 RPM – 3.04 N-m Stall

USD 49.95 USD

SKU: wSslVulg

Brand: Buehler

MPN: 1.13.075.204.00

GTIN: Does not apply

Condition: New

Tags: 0.15 HP 1.13.075.204.00 12 V 15.3 A 28.3 oz-in 431 oz-in 5/16 in 6000 RPM Buehler General Purpose Motor Permanent Magnet Reversible Straight

Categories: Metalworking Equipment

Specifications

Full Load Amps	15.3 A
MPN	1.13.075.204.00
Actual Rated Input Voltage	12 V
DC Stator/Winding Type	Permanent Magnet
Shaft Type	Straight
Nominal Rated Input Voltage	12 V
Starting/Locked Rotor Torque	431 oz-in
Reversible/Non-Reversible	Reversible
Rated/Full-Load Torque	28.3 oz-in
Shaft Diameter	5/16 in
Base RPM	6000 RPM
Brand	Buehler
Rated Load (HP)	0.15 HP
Type	General Purpose Motor

Stall current at 12 VDC: 160 A. Stall torque: 31,000 g-cm (431 oz-in). Operates on 1 - 12 VDC (12 VDC Nominal). No load speed of 6,000 RPM @ 12 VDC - 4.8 Amperes. No load speed of 500 RPM @ 1 VDC - 2 Amperes.
