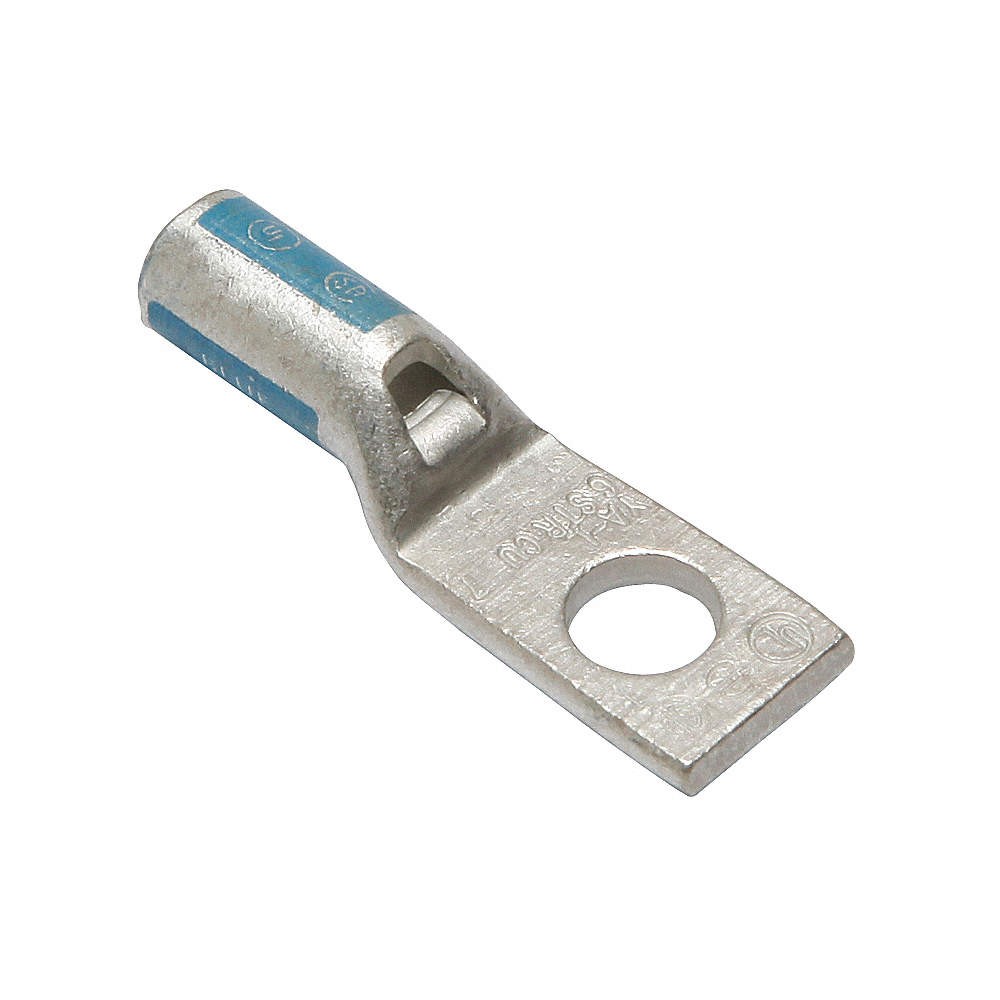

BURNDY YA6CL4BOX OneHoleLugCmprsnConn,STD,Blue,374/7 22C291
Specifications
| UPC | 0781810553008 |
| Brand | BURNDY |
| Termination Type | Compression |
| Connector Style | Crimp |
| Color | Silver |
| Contact Material | Copper |
| MPN | YA6CL3-BOX |
| Material | Brass, Copper |
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.63 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp These compression connectors are designed to provide reliable and controllable electrical connections. Each features high-conductivity copper construction and electro-tin plating to resist overheating and corrosion. The design also helps the connectors withstand a wide range of electrical and environmental conditions, including current surges,.
