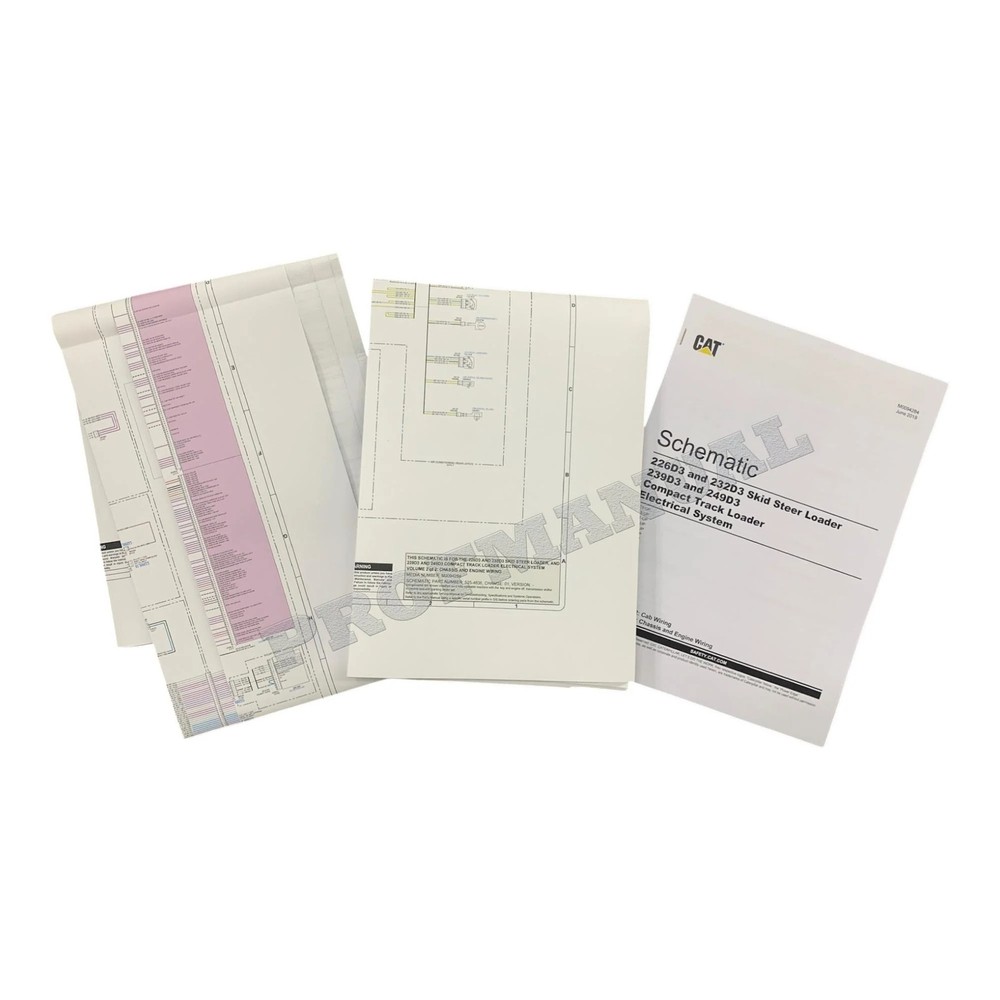

Caterpillar 226D3 232D3 239D3 249D3 Loader Electrical Schematic Service Manual
USD 85.00 USD
Specifications
| Model | 226D3 232D3239D3 249D3 |
| Brand | Caterpillar |
| Compatible Equipment Make | Caterpillar |
| Compatible Equipment Type | Schematic |
| Country Of Origin | United States |
| MPN | M0094284 |
| Manufacturer Part Number | M0094284 |
(4) Resistor, Sender, Switch and Solenoid Specifications. 5) HARNESS and WIRE Electrical Schematic Symbols. Type:Electrical Schematic Service Manual. Serial number:HC91-Up, KE91-Up, P9C1-Up, R9E1-Up, D5R1-Up, DX81-Up, D5Z1-Up, HRS1-Up.
