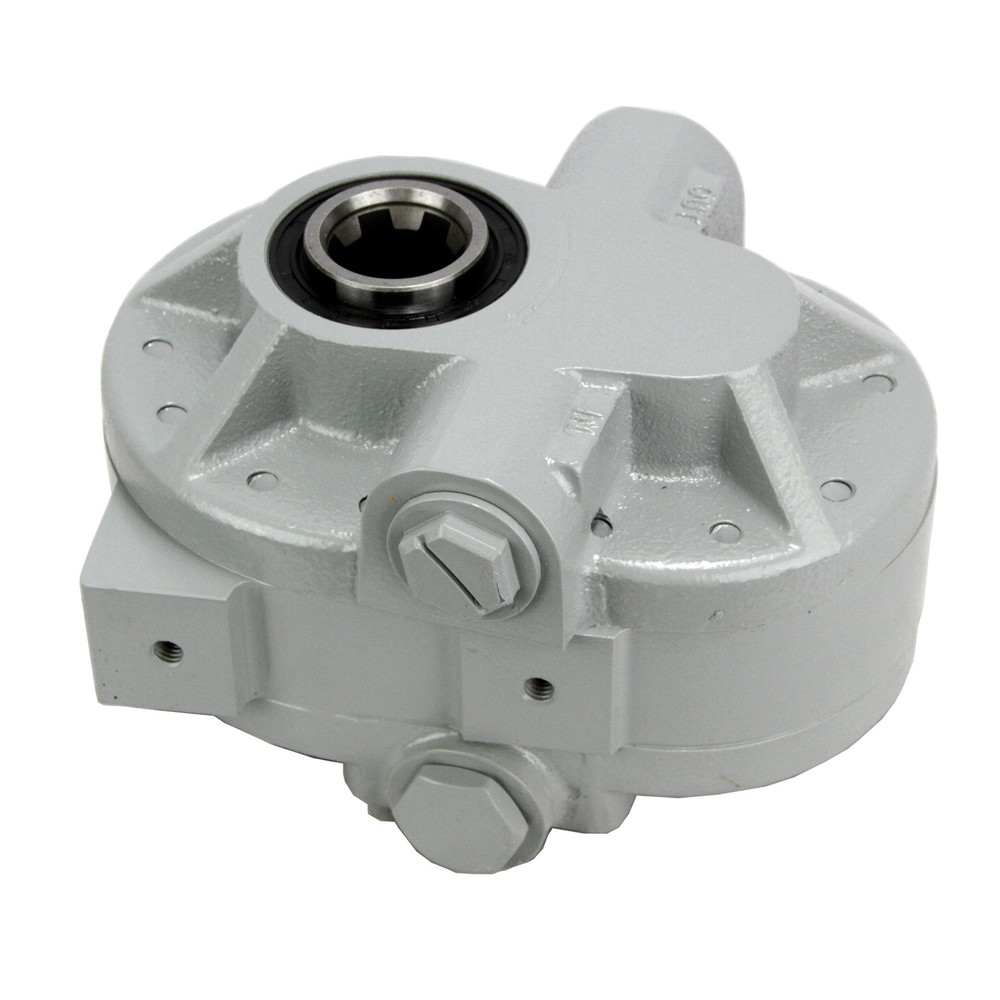

Chief PTO Tractor Pumps (GP-PTO) – 22 GPM @ 1000 RPM, 2250 PSI, SAE Ports

USD 742.60 USD

SKU: 63CtBhkq

Brand: Chief

MPN: CB-P90LJ42S33SS

Condition: New

Tags: 1 3/8-6T Spline 2255 Max PSI 5.49 8-22 GPM CB-P90LJ42S33SS Chief China Hydraulic PTO Gear SAE 12 SAE 16 Unit

Categories: Metalworking Equipment

Specifications

Brand	Chief
CID	5.49
Hydraulic Pump Type	PTO Gear
Shaft	1 3/8-6T Spline
MPN	CB-P90LJ42S33SS
Rated Pressure	2255 Max PSI
Inlet Port Diameter	SAE 16
Outlet Port Diameter	SAE 12
Country/Region Of Manufacture	China
Type	Hydraulic
Unit Type	Unit

The Chief GP-PTO model is a gear pump designed for use on a tractor's Power Take-off (PTO). This line is offered in four displacement sizes, from 3.41 to 9.76in3/rev (56-160cm3/rev).The recommended working conditions are as follows: Filtration: 25 microns or betterInlet pressure 12 to 32 psi absoluteOil Viscosity: 6 to 200 cStAmbient Temperature: -8 to 130°F (-22 to 55°C)Oil Temperature: -12 to 175°F (-25 to 80°C)Model Specific Information: Model: GP-PTO-22-1000GPM: 22 (@rated speed)CID: 5.49Ports: SAE-16/12Shaft: 1 3/8" Female spline, 6 toothRotation: Counterclockwise
