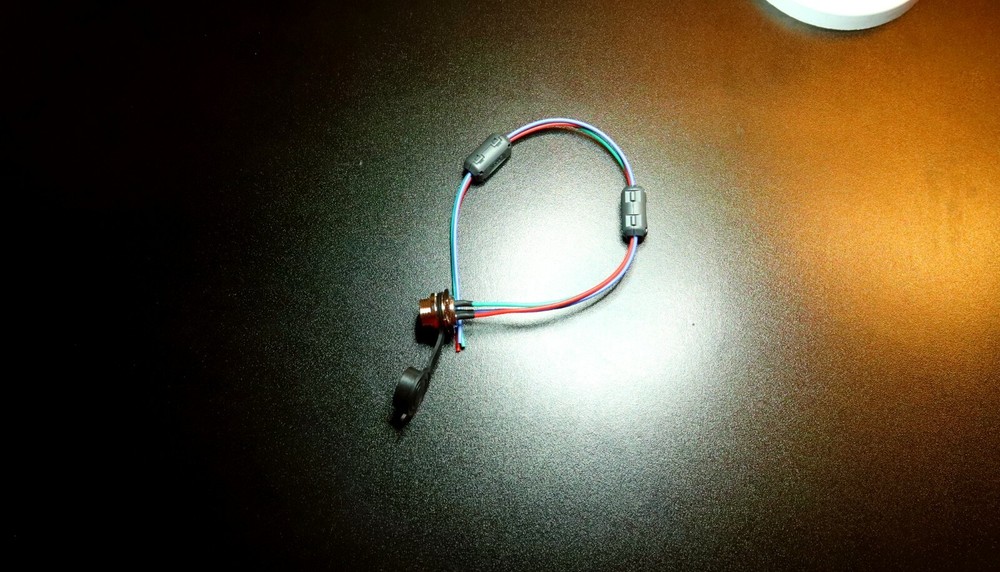

CNC GX-16 3 Pin Male Panel Mount Connector Wired Silicone Leads & EMI Filters
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Compatible Mounting Type | Bulkhead |
| Connector Style | GX-16 |
| Type | Aviation |
| Brand | eDealers Direct |
Please review the entire listing, and all videos carefully to understand the gravity of this package.This listing is for one prewired GX-16 3 pin male panel mount connector with dust cover.These connectors are rated to 250V; Rated Current Amp: 15A These units are wired using premium 20awg silicone leads rated to 300v, and temp rated to 200c (392f), and then insulated with heatshrink tubing as they should be. The leads are 12in in length to allow easy connection within your CNC controllers enclosure.These also include dual TDK ferrites for EMI protection eliminating the requirement for shielded cable These provide the fastest way to assemble the accessory outputs for a CNC controller. If you want to install a home switch, touch plate, limit switch, or relay these connectors make the process super fast.A CNC system would require one of these to support, every switchaccessory the system will use. Now extrapolate that over the amount of switches/accessories your system will have, and multiply each of them by 3 terminals as that's what each of these connectors have to solder to see the amount of time saved by the amount of soldering you don't have to do.The pins are wired to this pinout.1-Blue2-Red3-Green (allocated for a shield drain from your CNC accessory cables)Here's an video overview discussing them. Fastest Way To Wire A CNC Controller Using Individual Drives, And Accessories 4K.. Video will open in a new window Using the eBay App? Paste link into a browser window: [isdntekvideo]
