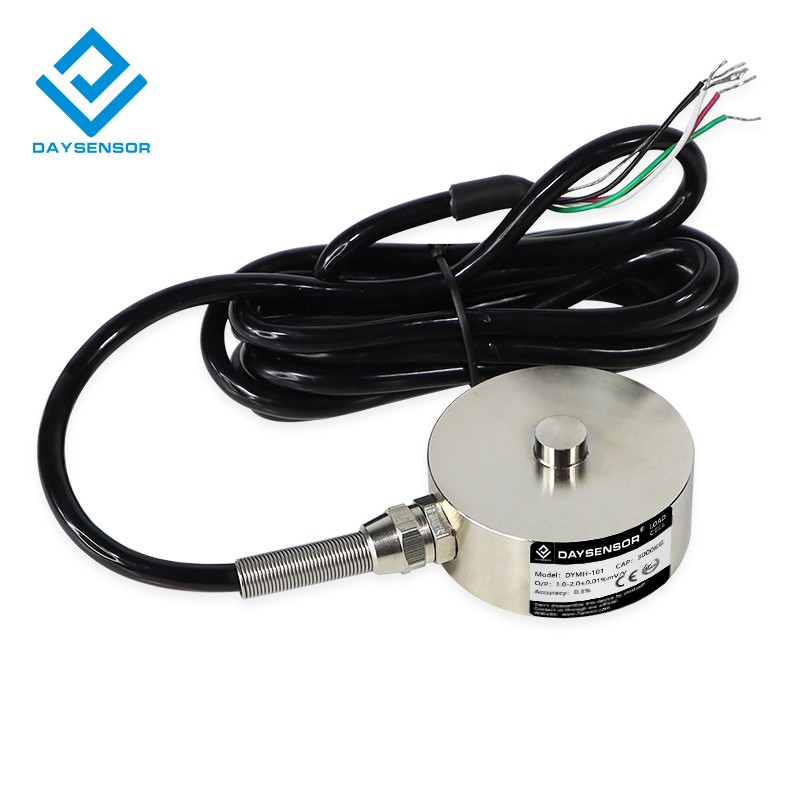

DAYSENSOR Micro Capsule Load Cell,Alloy Steel IP66 Compression Force Sensor

USD 59.99 USD

SKU: gJ2B5Fop

Brand: DAYSENSOR

GTIN: Does not apply

Condition: New

Tags: ±0.05%F.S/10℃ ±0.1%F.S/30min ±1%F.S ≥5000MΩ 0-50KG（0-110 lb） 0.1%F.S 1*Load cell sensor 10 mV 150%F.S 2.0±0.1mV/V 3 Years 350±10Ω Alloy Steel DAYSENSOR IP66

Categories: Metalworking Equipment

Specifications

Measurement Range	0-50KG（0-110 lb）
Zero Output	±1%F.S
Safety Overload	150%F.S
Creep	±0.1%F.S/30min
Temperature Effect On Zero	±0.05%F.S/10℃
Material	Alloy steel
Wanranty	3 Years
Brand	DAYSENSOR
Protection Class	IP66
Repeatability	0.1%F.S
Input Impedance	350±10Ω
Sensitivity	2.0±0.1mV/V
Output Impedance	350±10Ω
Package List	1*Load cell sensor
Temperature Effect On Output	±0.05%F.S/10℃
Insulation Resistance	≥5000MΩ

Dynamic/Static Transducer. Load Cell Sensor. Customized output signal is 0-5V, 0-10V, or 4-20mA. Compact: it is small and lightweight, making it easy to install and integrate into various systems. Muti-component Sensor.

DAYSENSOR Micro Capsule Load Cell,Alloy Steel IP66 Compression Force Sensor
