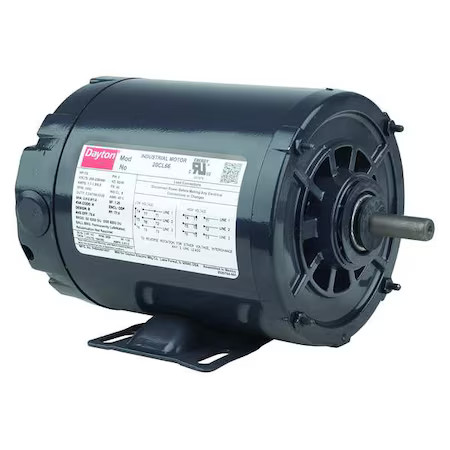

Dayton 20Cl65 Three-Phase General Purpose Motor, 1/3 Hp, 48 Frame, 230/460V Ac
USD 285.99 USD
Specifications
| Brand | DAYTON |
| MPN | 20CL65 |
| Model | 20CL65 |
| Style | General Purpose Motor |
| Item | General Purpose Motor |
| Overall Length | 9-5/16" |
| Type | General Purpose Motor |
| Weight | 27.2000 |
| Length | 14.000 |
| Mounting | Base |
| Width | 10.400 |
| Depth | 10.400 |
| Voltage | 208-230/460 V |
| Bearings | Ball |
| Hz | 60/50 |
| Footnotes | 5,10 |
| Frame Material | Steel |
| Manufacturers Warranty Length | 1 yr. |
| Duty | Continuous |
| HP | 1/3 |
| Full Load Amps | 1.4-1.4/0.70 |
| Max. Ambient Temp. | 40 Degrees C |
| RPM Range | 3001-3600 |
| Length Less Shaft | 7-3/4" |
| Nameplate RPM | 3450 |
| Rotation | CW/CCW |
| Motor Application | General Application |
| Motor Bearings | Ball |
| UPC | 190735152669 |
Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 69.5 Percent, Continuous Duty, 3001-3600. General Purpose Motor. General Purpose. & Recepticles. Electrical Outlets. Light Industrial.
