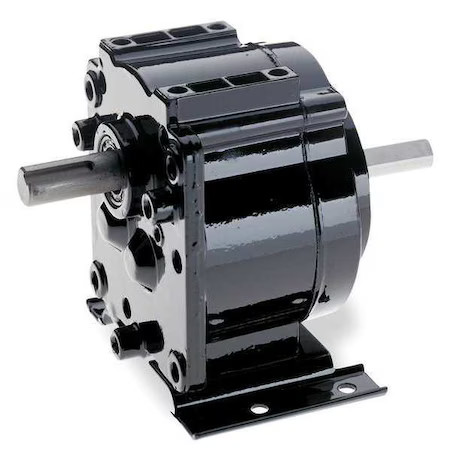

Dayton 2Z821 Speed Reducer, Indirect Drive, 23.4:1
Dayton 2Z821 Speed Reducer, Indirect Drive, 23.4:1

Dayton 2Z821 Speed Reducer, Indirect Drive, 23.4:1

USD 400.99 USD
SKU: JY97OwnW
Brand: DAYTON
MPN: 2Z821
GTIN: 190735241264
Condition: New
Tags: 190735241264 2Z821 5.0500 5.700 9.600 DAYTON
Categories: HVAC & Refrigeration: Parts & Accessories

Specifications

BrandDAYTON
MPN2Z821
Model2Z821
Weight5.0500
Length9.600
Width5.700
Depth5.700
UPC190735241264

Speed Reducer, Input Connection Type Indirect Drive, Maximum Output Speed 72 RPM, Base to Center 3.5 in, Gear Ratio 23.4:1, Rotation -, Maximum Input Horsepower 0.17 hp, Maximum Output Torque 100 in-lb, Overhung Load Capacity 175 lb, Mounting Orientation Any Angle, Application Speed Reducer, Bearing Type Ball, Maximum Input Speed 1,725 RPM.
