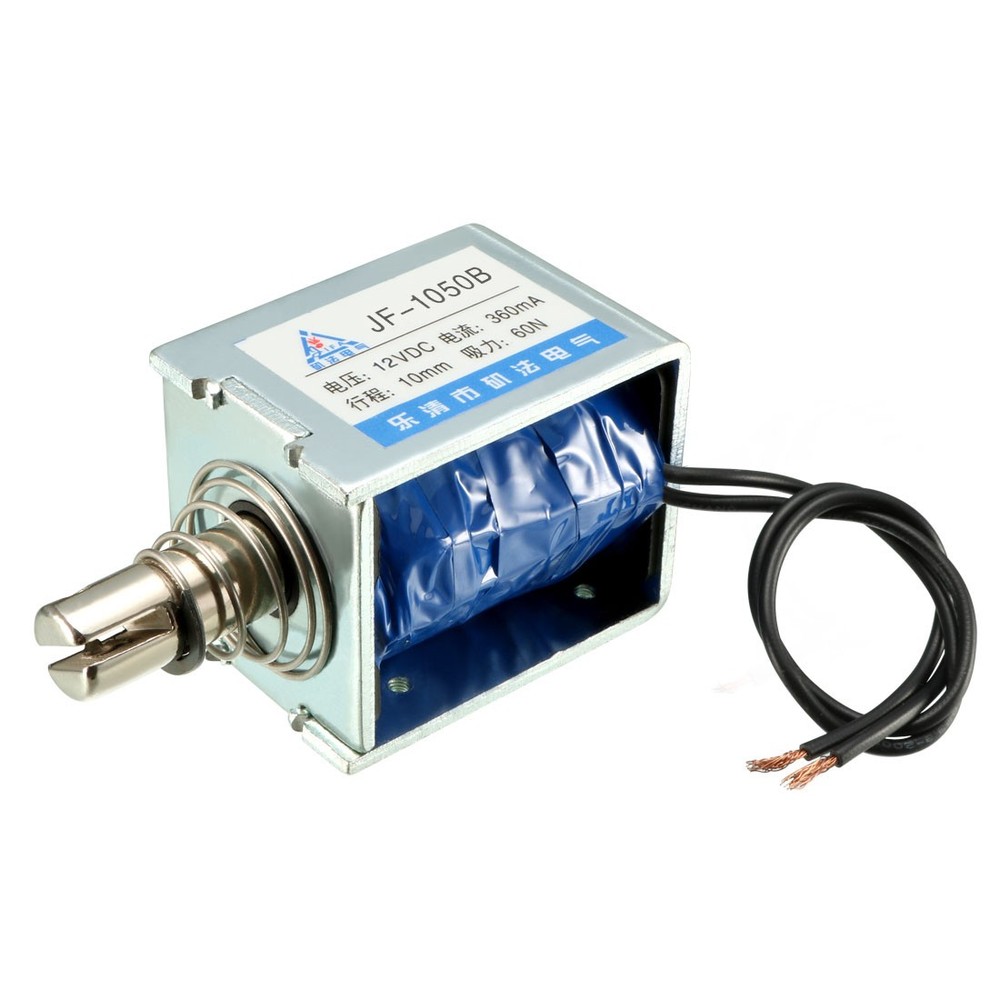

DC 12V 360mA 60N 10mm Pull Push Type Linear Motion Solenoid Electromagnet
Specifications
| Brand | Uxcell |
| Main Color | Silver Tone,Blue |
| Travel | 10mm |
| Total Length | 85mm/3.35" |
| Country Of Manufacture | CHINA |
| Model | JF-1050B |
| Cable Length | 170mm/6.69" |
| Push Bar Dia | 12mm/0.47" |
| Type | Push Pull Type |
| Material | Metal |
| Force | 60N |
| Net Weight | 381g |
| Rated Voltage | DC 12V |
| Current | 360mA |
| UPC | 609876963923 |
Description:1.Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.2.Support DC 12V voltage, high power, pull push type, linear motion, is easy to install.3.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.Specification:Material :MetalForce: 60N;Travel: 10mm ;Rated Voltage: DC 12V;Current: 360mA;Cable Length: 170mm/6.69"Mounting Hole Dia.: M3;Total Length: 85mm/3.35";Push Bar Dia: 12mm/0.47"Size: 51.5 x 37 x 41mm/2.04" x 1.46" x 1.61"(L*W*H)Package Content: 1 x DC Solenoid ElectromagnetNote:Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
