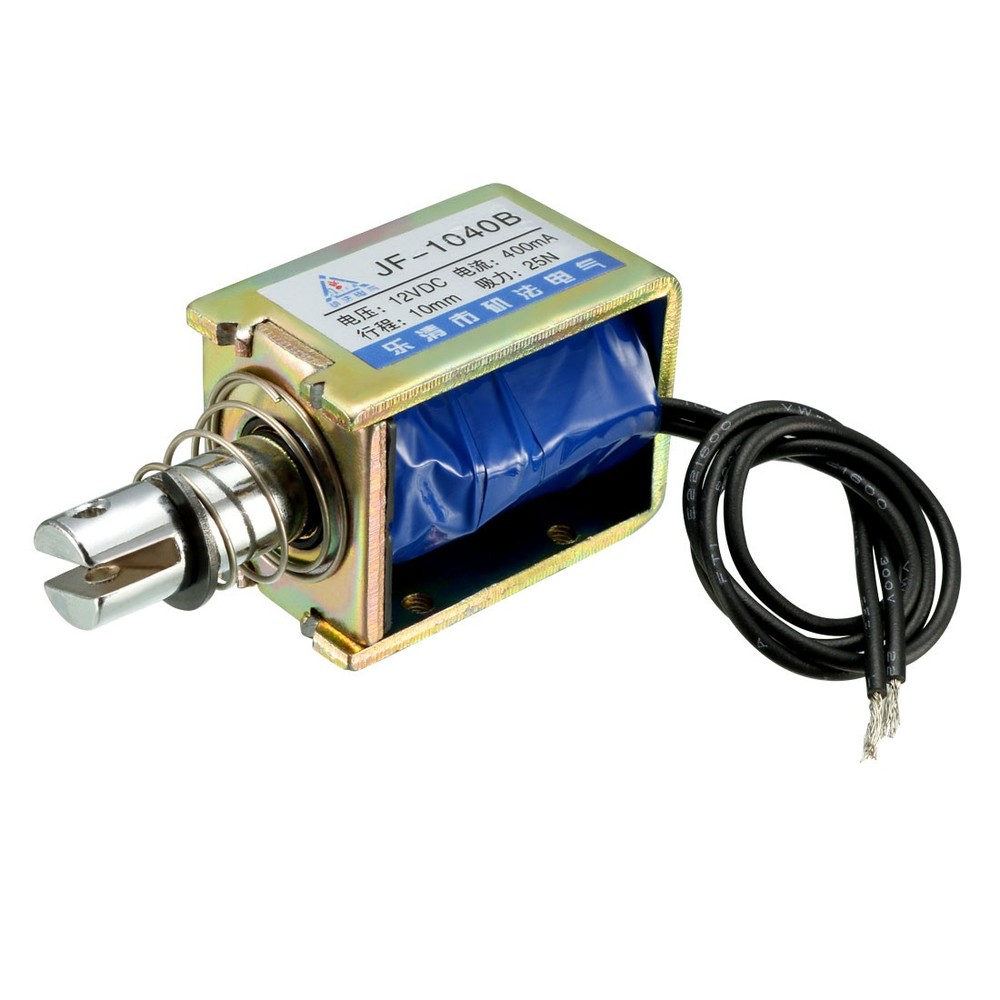

DC 12V 400mA 25N 10mm,Pull,Push Type Linear Motion Electromagnet Solenoid
Specifications
| Brand | Uxcell |
| Main Color | Silver Tone,Blue |
| Country Of Manufacture | CHINA |
| Model | JF-1040B |
| Material | Metal |
| Net Weight | 148g |
| Travel | 10mm |
| Total Length | 7cm/2.76" |
| Cable Length | 180mm/7.09" |
| Push Bar Dia | 10mm/0.39" |
| Type | Push,Pull Type |
| Force | 25N |
| Rated Voltage | DC 12V |
| Current | 400mA |
| UPC | 609876963633 |
Description:1.Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.2.Support DC 12V voltage, high power, pull push type, linear motion, is easy to install.3.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.Specification:Material :MetalForce: 25N;Travel: 10mmRated Voltage: DC 12V;Current: 400mA;Total Length: 7cm/2.76";Push Bar Dia: 10mm/0.39";Cable Length: 180mm/7.09" ;Mounting Hole Dia.: M3Size: 40 x 24 x 29mm/1.57" x 0.94" x 1.14"(L*W*H)Package Content: 1 x DC Electromagnet SolenoidNote:Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
