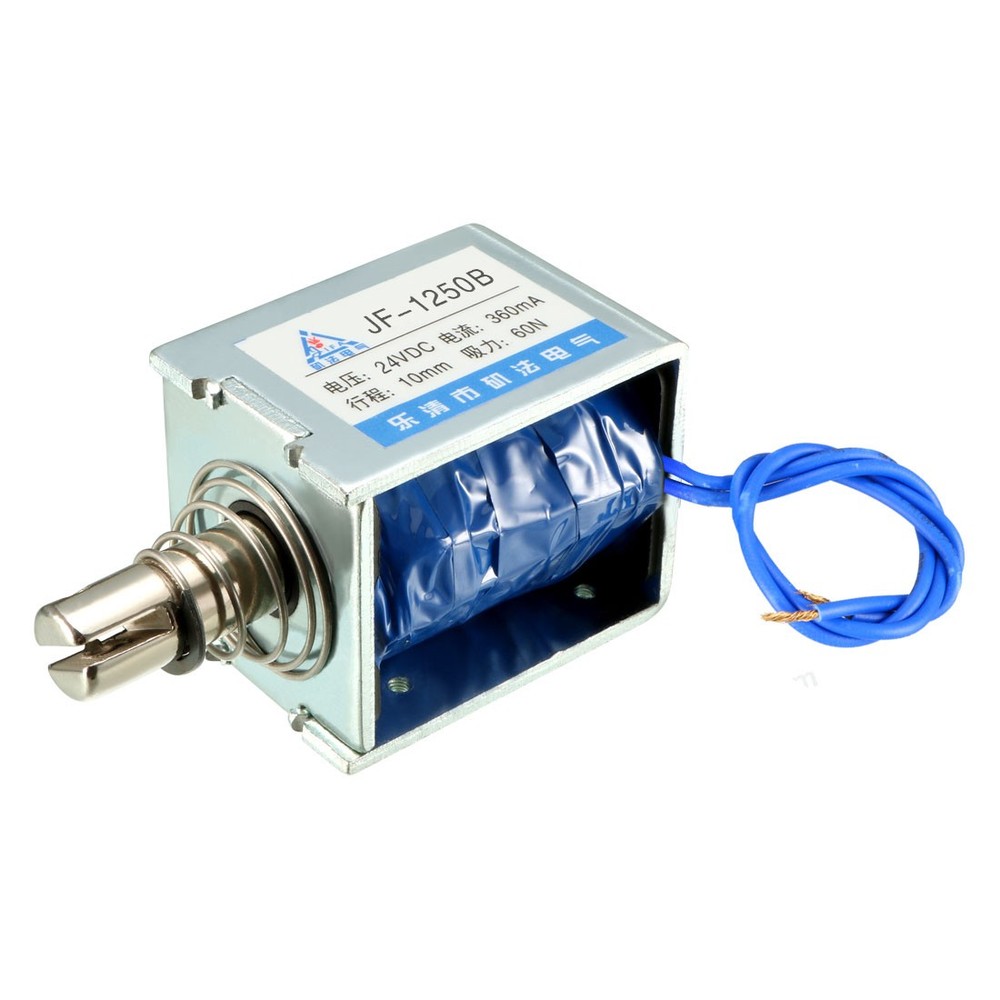

DC 24V 360mA 60N 10mm Pull Push Type Frame Linear Motion Solenoid Electromagnet
Specifications
| Country Of Manufacture | CHINA |
| Material | Metal |
| Net Weight | 357g |
| Model | JF-1250B |
| Main Color | Silver Tone,Blue |
| Brand | Uxcell |
| Cable Length | 170mm / 6.69" |
| Rated Voltage | DC 24V |
| Force | 60N |
| Type | Push Pull Type |
| Current | 360mA |
| Travel | 10mm |
| Push Bar Dia | 12mm / 0.47" |
| Total Length | 88mm / 3.46" |
| Mounting Hole Dia. | 2.5mm / 0.1" |
| Power | 8.6W |
| UPC | 714998130686 |
Description:Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.Support DC 24V voltage, high power, pull push type, linear motion, is easy to install.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc. Specification:Material :MetalForce: 60N;Travel: 10mmCable Length: 170mm / 6.69";Rated Voltage: DC 24V;Current: 360mAPush Bar Dia: 12mm / 0.47";Total Length: 88mm / 3.46";Mounting Hole Dia.: 2.5mm / 0.1"Size: 52 x 37 x 41mm / 2.05" x 1.46" x 1.61" (L*W*H)Package Content: 1 x DC Solenoid ElectromagnetNote:Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
