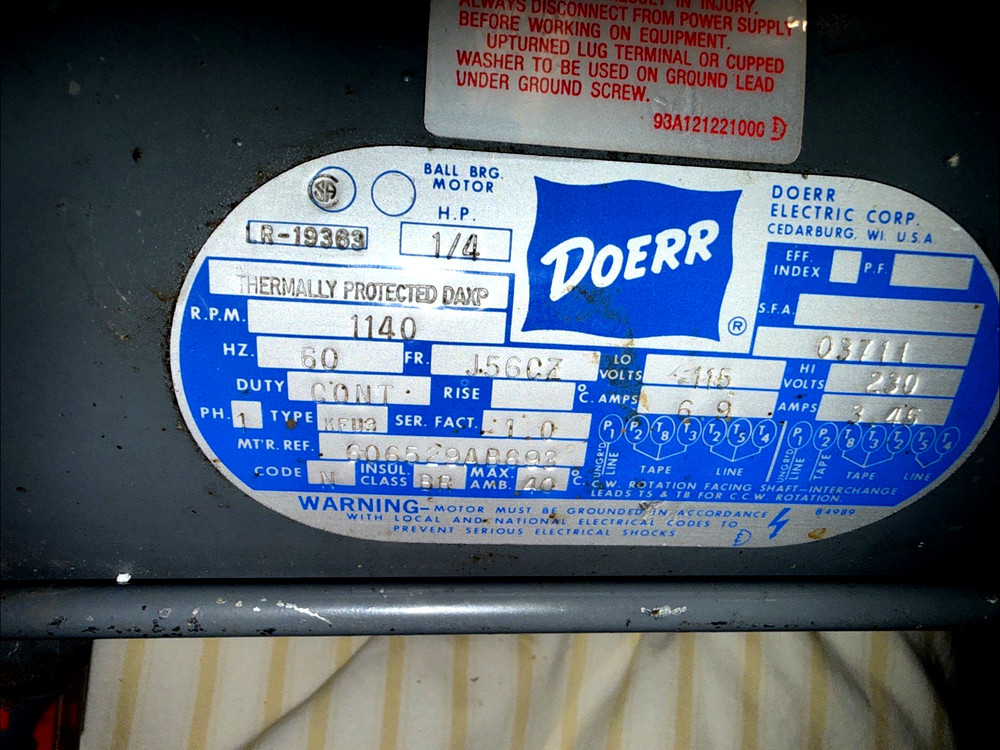

Doerr 1/4 HP, 1140 RPM – Single-phase 115/230-volt Motor For Hazardous Loc.
USD 90.00 USD
Specifications
| Rated Load (HP) | 1/4 |
| AC Frequency Rating | 60 Hz |
| Shaft Type | Keyed |
| AC Motor Type | induction |
| Shaft Diameter | 5/8" |
| Brand | Doerr |
| Reversible/Non-Reversible | Reversible |
| Service Factor | 1.00 |
| Model | R19363 |
| Nominal Rated Input Voltage | 115 / 230 |
| AC Phase | Single Phase |
| Country Of Origin | United States |
Doerr motor for hazardous locations. Output flange C-face fit (rabbet fit) is 4.5" OD to step; step depth is ~. 100". OD of finished face 6.5"; four 1/4-20 tapped holed for face mounting are on 6" circle pattern.
