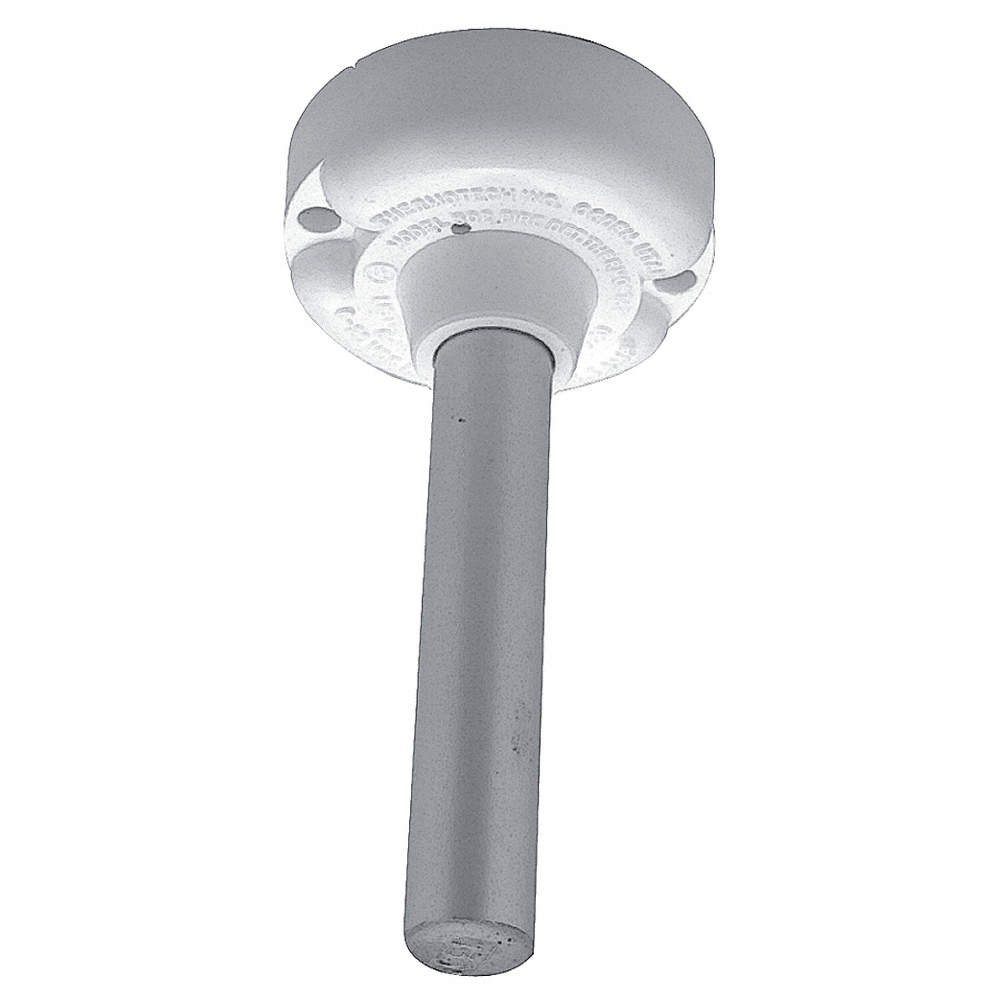

EDWARDS SIGNALING 302-AW-135 Heat Detector,Coverage 2500 Sq. Ft. 16X273

Specifications

Heat Detector, Rate Compensation, Finish Silver/White, Surface Mounting, Depth (In.) 2-1/16, Height (In.) 4-1/8, Length (In.) 2-1/16, Ambient Temp. Limits (F) -40 to 100 Degrees , Coverage (Square-Ft.) 2500, Standards UL, CSFM When activated, device sends signals on a hardwired connection to initiate an alarm. Temperature increase at the sensor of 15 Degrees F (9 Degrees C) or more per minute activates the rate-of-rise feature; self-restoring. If the temperature of the center disk rises to the sensor's rated temperature, the fixed temperature element activates. Nonrestorable and nonreusable. Once activated, the detector must be replaced. For indoor or outdoor use.
