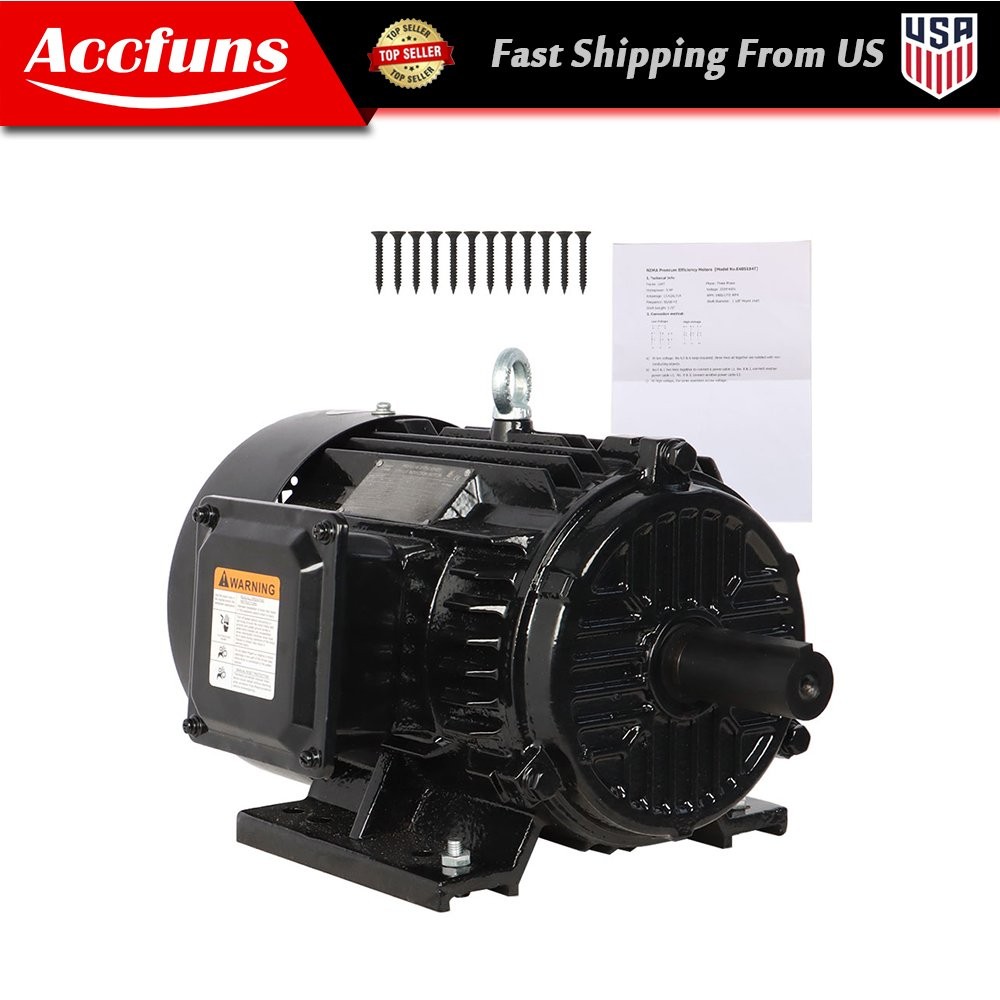

Electric Motor 1800 RPM 184T Frame TEFC 230/460 Volt Severe Duty 5HP 3 Phase

USD 366.99 USD

SKU: Kr1cwXnp

Brand: munirater

MPN: PEWWE5-18-184T

GTIN: Does not apply

Condition: New

Tags: 1 1/8 in 1.0/1.15 13.42/6.71 1800 1800 RPM 184T 230 V, 460 V 50/60 Hz 685650078519 Black F (Max 311°F) Heavy Duty IP55 Keyed munirater PEWWE5-18-184T Three Phase United States

Categories: Metalworking Equipment

Specifications

Country Of Origin	United States
UPC	685650078519
Brand	munirater
MPN	PEWWE5-18-184T
AC Phase	Three Phase
AC Frequency Rating	50/60 Hz
IP Rating	IP55
Shaft Diameter	1 1/8 in
Model	PEWWE5-18-184T
Nominal Rated Input Voltage	230 V, 460 V
Service Factor	1.0/1.15
IEC Frame Size	184T
Shaft Type	Keyed
Insulation Class	F (Max 311°F)
Base RPM	1800
Full Load Amps	13.42/6.71
Color	Black
Design	Heavy Duty

Description 5 Horsepower 3 Phase TEFC / IP55 Fully Enclosed 184T Frame Service Factor 1.0/1.15 Class F Insulation 104 lbs 230/460 Volt 1800 RPM (Full Load Speed 1755) Fan Cooled Class F Insulation Worldwide Electric Brand Shaft Length: Approximately 2 7/8" Keyed 1 1/8" Diameter Shaft Current: AC Full Load Amps:13.42/6.71(Usable on 208V at 13.9) 60 HZ (Suitable for 50 HZ with 1.0 SF) Rotation: Bi-Directional Shaft Material: 1045 Carbon Steel Nema Design B Max Temp: 40 Degrees C .
