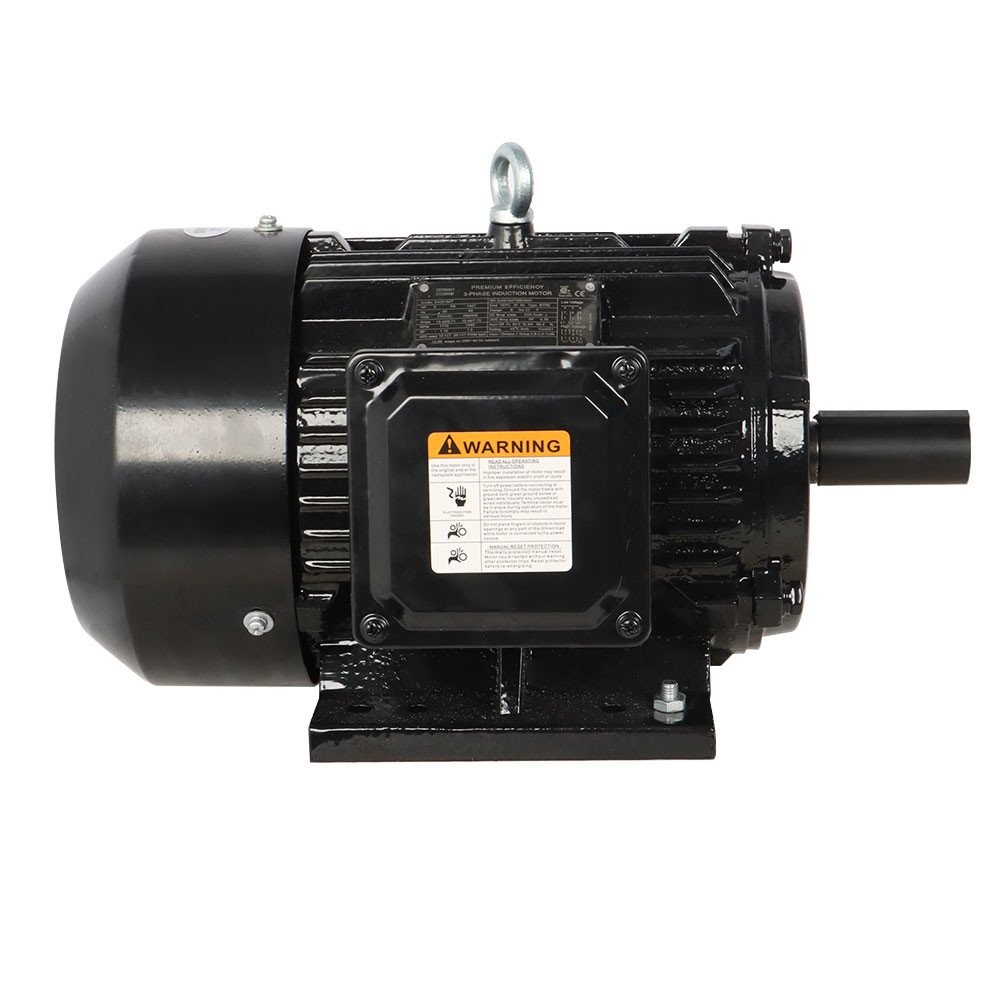

Electric Motor 5HP 1800 RPM 184T Frame TEFC 230/460 Volt Severe Duty 3 Phase
USD 360.84 USD
Specifications
| Country Of Origin | United States |
| Brand | findmall |
| MPN | IN2937519AL |
| Model | PEWWE5-18-184T |
| Nominal Rated Input Voltage | 230 /460 V |
| AC Phase | Three Phase |
| Service Factor | 1.15 |
| IEC Frame Size | 184T |
| AC Frequency Rating | 50/60 Hz |
| Shaft Type | Keyed |
| NEMA Design Letter Design | B (General Purpose) |
| Base RPM | 1480/1770 |
| Full Load Amps | 13.42 A, 6.71 A |
| Color | black |
| Design | Heavy Duty |
| IP Rating | IP55 |
| Shaft Diameter | 1-1/8 in |
| Shaft Length | 2.75 in |
| Rotation | Bi-Directional（CW/CCW） |
| Shaft Material | 1045 Carbon Steel |
| Max Temp | 40 Degrees C |
| Mounting Type | Base-Mounted |
| Insulation Class | F (Max 311°F) |
| Reversible/Non-Reversible | Reversible |
| Housing Material | Cast iron shell |
Specification： .
