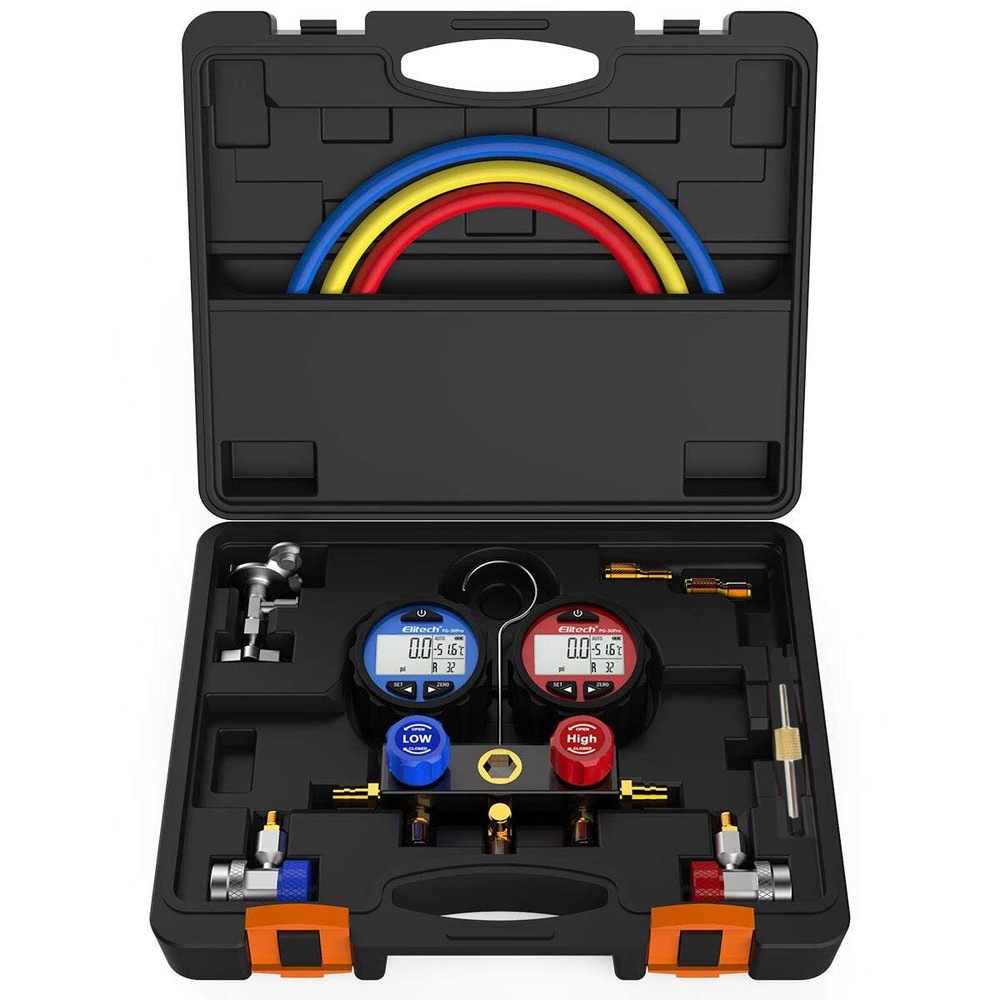

Elitech HVAC Manifold Gauge DMG-3 Refrigerant Pressure Gauge Set 2 Way w/Hoses
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Elitech |
| Manufacturer Warranty | 1 Year |
| Year Manufactured | 2023 |
| Refrigerant | R-12 |
| Gauge Purpose | Pressure |
| Items Included | Blue Low Side Hose |
This product is mainly used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It can display pressure in real-time with a bigger screen. 1 x Gauge Set 2-Way: red, blue Refrigerant Type: R134A, R22, R410A, etc. Max Working Pressure: 800psi Low side: blue High side: red 2 x Couplers Blue: Low side quick connector/adapter Red: High side quick connector/adapter Fits A/C manifold gauge sets (R-134A), coupler interface fits with R134A service ports, 1/4" male flare 3 x 4.1 Feet Hose Red Hose: high pressure Blue Hose: low pressure Yellow Hose: refrigerant (800 PSI working pressure and 4000 PSI burst pressure ) Other Accessories 1 x dual-purpose valve wrench 1 x corkscrew 2 x R410A adapter 1 x hook Pressure Measuring Range -14.5-500psi/-14.5-800psi Operating Temperature -10~60℃ Operating Humidity 35%~85%RH Pressure Resolution 0.5psi Temperature Resolution 1℃ Accuracy of Pressure ±0.5%FS (22℃~28℃) Accuracy of Temperature ±1℃ Battery Life six months Sampling Period 1s Battery Indicator display "LOB" at low battery Display 1.9 *1 (in) LCD/blue back-light Temperature Unit ℉ / °C Over Range Alarm Displays -OL- PG-30 Low Pressure PG-30Pro High Pressure PT-500&PT-800 DMG-1 DMG-3B DMG-3 Pressure Measuring Range -14.5-500psi -14.5-800psi -14.5-500/800psi -14.5-500/800psi -14.5-500/800psi -14.5-500/800psi Accuracy ±0.5%FS(22-28℃) ±0.5%FS(22-28℃) ±0.5%FS(22-28℃) ±0.5%FS(22-28℃) ±0.5%FS(22-28℃) ±0.5%FS(22-28℃) Fitting 1/8'' NPT 1/8'' NPT 1/8'' NPT 1/4'' SAE 1/4'' SAE 1/4'' SAE Measurement Units MPa,kPa,bar,psi,kg/m²,cmHg MPa,kPa,bar,psi,kg/m²,cmHg psi, inHg, kg/cm², cmHg, bar, kPa, Mpa MPa,kPa,bar,psi,kg/m²,cmHg MPa,kPa,bar,psi,kg/m²,cmHg MPa,kPa,bar,psi,kg/m²,cmHg Battery CR2450 3*1.5V AAA 6*1.5V AA CR2450 3*1.5V AAA 3*1.5V AAA Refrigerant Types 91 87 140 91 87 87 Wireless App N/A N/A ✓ N/A N/A N/A Super-heat and sub-cool N/A N/A ✓ N/A N/A N/A Temperature Clip N/A N/A ✓ N/A N/A N/A Quick Coupler N/A N/A N/A N/A N/A ✓
