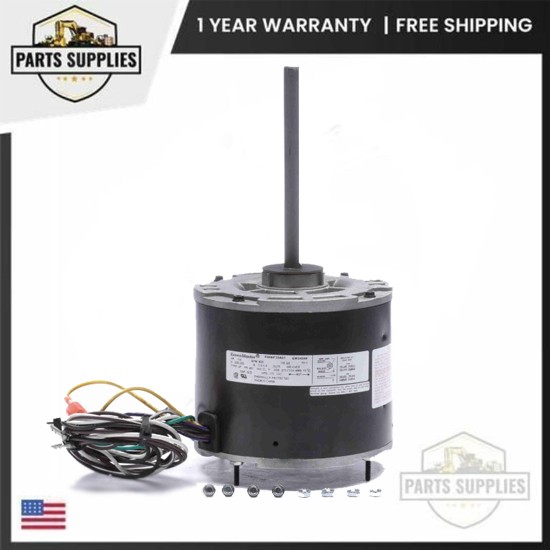

EM3404F Century 1-Phase 1/4 HP 208-230V 825 RPM 1-Speed Motor for Condenser Fan

USD 153.64 USD

SKU: 5lfYb3mj

Brand: Century

MPN: EM3404F

GTIN: Does Not Apply

Condition: New

Tags: 0.19 kW 0.500 in ( 12.7 mm ) 1 Year 1.3-1.4 A 1/4 HP 11.17 in ( 297.18 mm ) 14 lbs ( 6.35 Kg ) 208/230 V 48y 6.0 in ( 152.4 mm ) 60 Hz 825 RPM Automatic CENTURY EM3404F Flat Mexico Motor Reversible Single ( 1 )

Categories: Cleaning & Janitorial Supplies

Specifications

MPN	EM3404F
Brand	Century
Interchange Part Numbers	EM3404F
Type	Motor
Part Type	Motor
Warranty	1 Year
Output HP	1/4 HP
Output KW	0.19 kW
Voltage	208-230 V
Frequency	60 Hz
Power Phase	Single ( 1 )
Speed	825 RPM
Amperage	1.3-1.4 A
Frame	48Y
Shaft Diameter	0.500 in ( 12.7 mm )
Shaft Extension	6.0 in ( 152.4 mm )
Overall Length	11.17 in ( 297.18 mm )
Shaft Type	Flat
Rotation	Reversible
Thermal Protection	Automatic
Weight	14 lbs ( 6.35 Kg )
Country Of Origin	Mexico

Replaces OEM part number: EM3404F. 1 YR WARRANTY. Century PRO-E SERIES® - Engineered for dependable and efficient operation. Durable Bearings: Ball Bearings on both the Drive and Opposite Drive Ends. Key Features.
