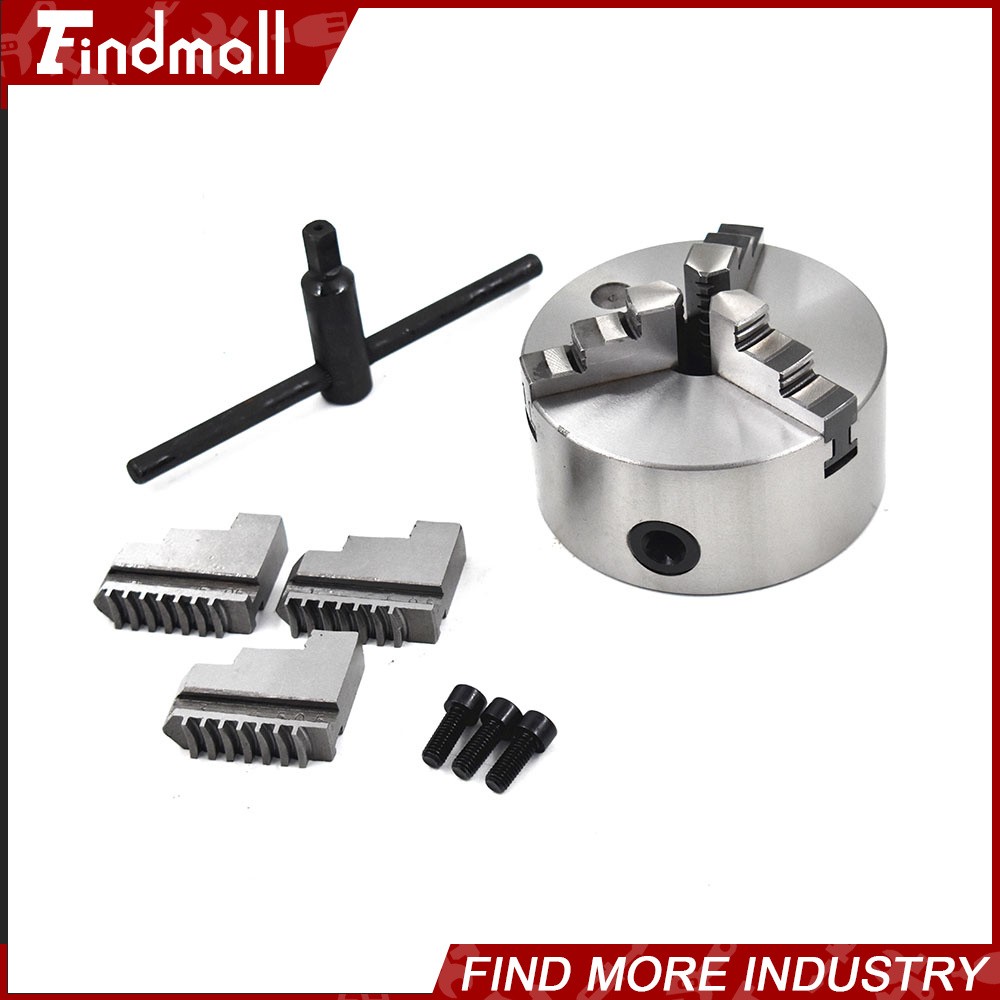

Findmall 125mm 3-jaw Self Centering Lathe Chuck For Drilling Milling Machine
USD 53.20 USD
Specifications
| Country Of Origin | United States |
| Brand | findmall |
| Lathe Chuck Type | Manual Lathe Chuck |
| Operation | Manual |
| MPN | 258362 |
| Size | 125mm |
| Bolt Circle Diameter | 115 mm (4.25") |
| Center Thru Hole Diameter | 30 mm (1.18") |
| Chuck Body Thickness | 60 mm (2.28") |
| Internal Jaw Clamping Range (A-A1) | 4-85 mm (0.079"-1.181") |
| Runout | 0.003" |
| Warranty | 1 year |
Specifications: Size: 125 mm (4.921") Jaw: 3 Jaw Model: K11-125 Color: Silver Material:Hardened Steel Diameter: 125 mm (4.921") Center Hole: 30 mm (1.18") Thickness: 60 mm (2.28") Bolt Circle Diameter: 115 mm (4.25") Runout: 0.003" Internal Jaw Clamping Range (A-A1): 4-85 mm (0.079"-1.181") Internal Jaw Jamming Range (B-B1): 65-200 mm (1.181"-3.543") External Jaw Clamping Range (C-C1): 30-80 mm (1.181"-3.543") Package Included: 2 × hard solid jaws 3 × mounting screws 1 × hexagon wrench .
