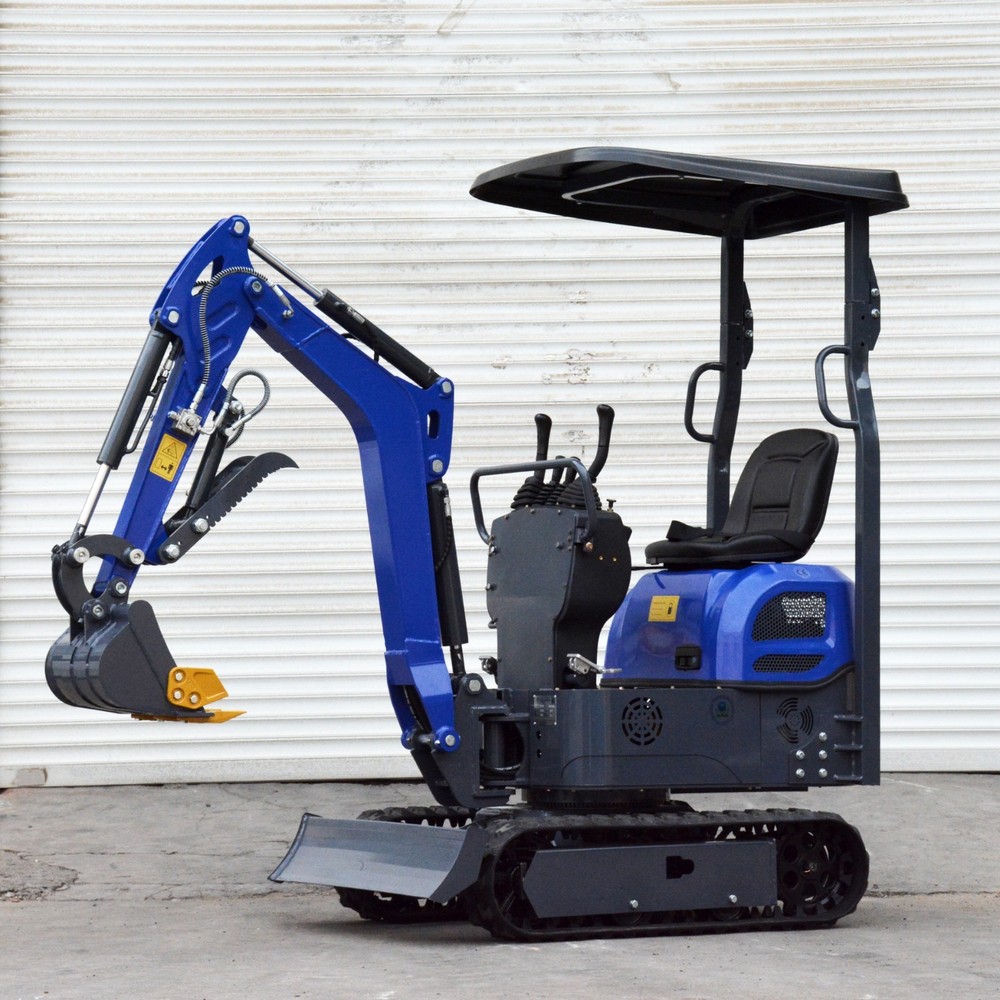

Free Shipping 13.5HP Mini Excavator 1 TON B&S EPA Engine Hydraulic Thumb Digger

USD 4898.99 USD

SKU: UzNp0Ooh

MPN: 14U

Condition: New

Tags: 0.025 m³ 1.1 L 10.20 110 mm 1220 mm 1426 mm 14U 1764 mm 180 mm 19 MPa 1961 mm 2.2 km/h 2025 21 kPa 2101 mm 2222 mm 2786 mm 28.5 N·m 30" 3005 mm 3060 rpm 384 mm 4.3 KN 420 CC 5/6 6.6 L 780 mm 9.92 KW 90 mm × 66 mm 900 mm 940 mm B&S EPA Engine Briggs & Stratton China EXCAVATOR Mini Excavator RELYMG Under 3,000 lbs Unit

Categories: Conduit & Tubing

Specifications

Engine Model	Briggs & Stratton
Track Width	180 mm
Minimum Ground Clearance	110 mm
Max Dig Depth	5' - 6'
MPN	14U
Bore × Stroke	90 mm × 66 mm
Climbing Ability	30°
Equipment Type	Mini Excavator
Bucket Capacity	0.025 m³
Serial Number	14U
Maximum Digging Distance	3005 mm
Ground Pressure	21 kPa
Model Year	2025
Unit Type	Unit
Turning Radius	780 mm
Working Pressure	19 MPa
Net Horsepower (HP)	10 - 20
Digging Force	4.3 KN
Rated Speed	3060 rpm
Fuel Tank Capacity	6.6 L
Maximum Digging Height	2786 mm
Track Length	1220 mm
Ground Contact Length	900 mm
Rated Torque	28.5 N·m
Operating Weight	Under 3,000 lbs
Overall Height (roof)	2222 mm
Maximum Digging Depth	1764 mm
Make	RELYMG
Displacement	420 cc
Oil Capacity	1.1 L
Maximum Dumping Height	1961 mm
Overall Length	2101 mm
Overall Width	940 mm
Model	B&S EPA Engine
Rated Power	9.92 KW
Counterweight Ground Clearance	384 mm
Overall Height (seat)	1426 mm
Travel Speed	2.2 km/h
Country Of Origin	China

Hydraulic oil radiator: maintains stable oil temperature, prevents hydraulic oil deterioration and component wear, and avoids shutdown failures caused by high temperature. Upper boom cylinder: The upper cylinder design optimizes torque distribution, providing stronger initial digging force and boom lifting force, significantly reducing the risk of external impact and crushing injuries, and effectively extending service life.
