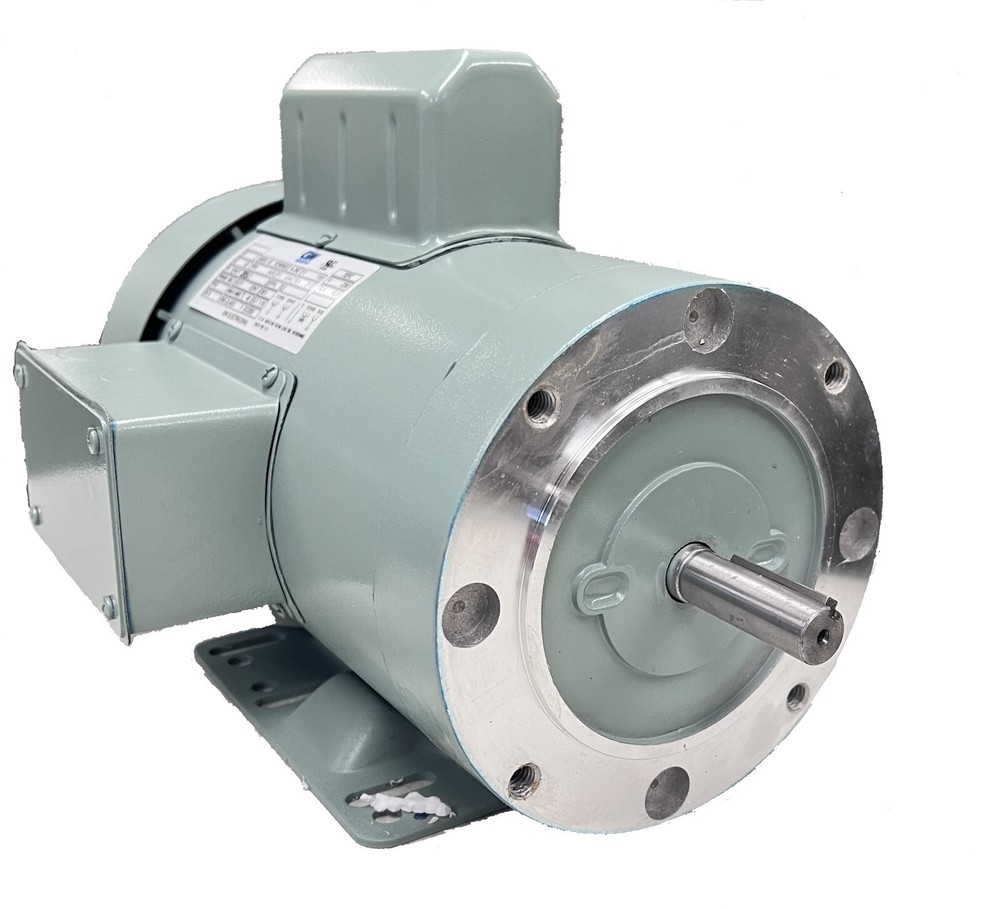

General Purpose 2 HP 1 Phase Motor 3450 RPM 56C Frame TEFC 115/230V

USD 158.00 USD

SKU: QD9PTLkO

Condition: New

Tags: 1.15 115 V 30 Days 3450 5/8 in 56C 60 Hz Base-Mounted China F (Max 311°F) Induction/Asynchronous IP55 Keyed Money Back Returns Accepted Reversible Seller Single Phase YCN5692A-JN2

Categories: Metalworking Equipment

Specifications

Return Shipping Will Be Paid By	Seller
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
Refund Will Be Given As	Money Back
AC Frequency Rating	60 Hz
Base RPM	3450
Shaft Type	Keyed
AC Motor Type	Induction/Asynchronous
Shaft Diameter	5/8 in
MPN	YCN5692A-JN2
Insulation Class	F (Max 311°F)
Mounting Type	Base-Mounted
Reversible/Non-Reversible	Reversible
IP Rating	IP55
Service Factor	1.15
Nominal Rated Input Voltage	115 V
Model	YCN5692A-JN2
AC Phase	Single Phase
Country/Region Of Manufacture	China

This is a general purpose motor of Nema standard 56C with mounting base. 2HP, 1 Phase 115/230V, 60Hz. Full Load AMP is 21.6A under 115V and 10.8A under 230V.

General Purpose 2 HP 1 Phase Motor 3450 RPM 56C Frame TEFC 115/230V
