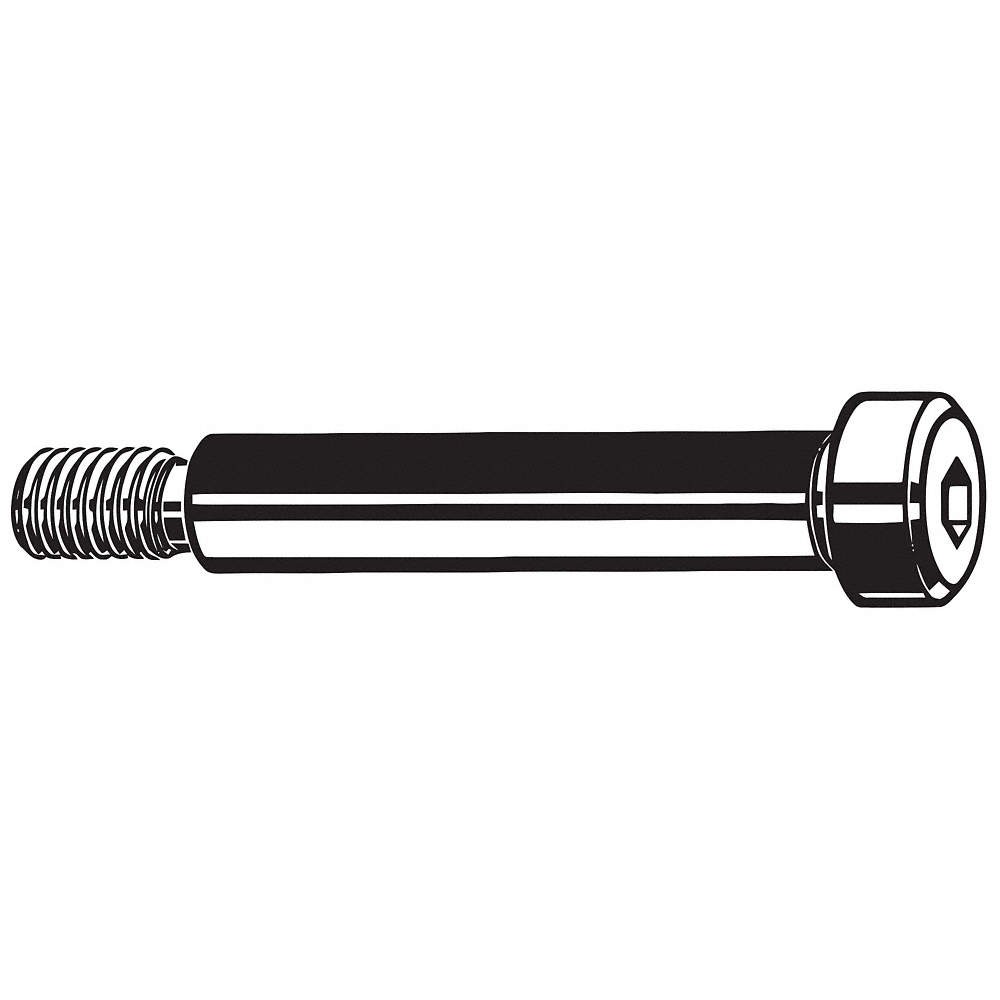

GRAINGER APPROVED M51044.100.0050 ShldrScrw,SS,M8-1.25,16mmHdDia,PK5 31KG64

Specifications

Shoulder Screw, Shoulder Screw Type Standard Shoulder Screw, Head Type Standard, Drive Type Socket, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, System of Measurement Metric, Thread Size M8-1.25, Minimum Thread Length 13 mm, Shoulder Length 50 mm, Shoulder Length Tolerance -0.0 mm to +0.25 mm, Shoulder Diameter 10 mm, Shoulder Diameter Tolerance -0.05 mm to +0.0 mm, Pack Size Small Pack, Head Height 7 mm, Head Diameter 16 mm, Dimensional Standards ISO 7379 Closer tolerances permit use in critical applications that require greater precision. Undercut beneath the head lets the screws mount flush to surface.
