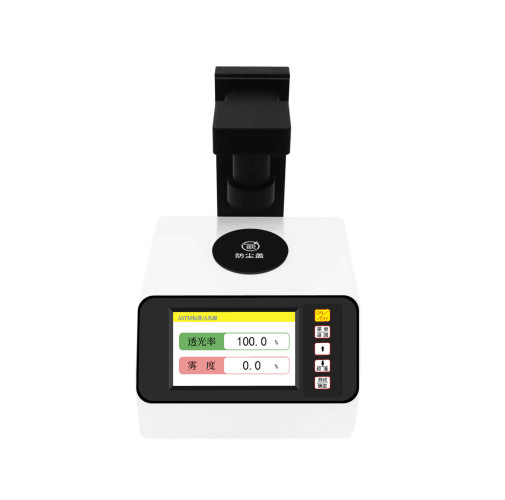

Haze Meter Tester Hazemeter Transmission Rate Haze Meter Test Aperture 7mm
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Maximum Measured Thickness | 55mm |
| Display Screen | 5 inch color screen |
| Test Aperture Size: | 7mm |
| Instrument Weight | 2.97KG |
| MPN | 202312061704 |
| Dimension | 200mm*200mm*277mm |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Brand | CNYST |
| Repeatability | 0.08 |
| Working Temperature | 0℃-50℃ |
| Power Source | DC12V |
| Country/Region Of Manufacture | China |
| Test Aperture Size | 15mm |
| Resolution | 0.01 |
Haze Meter Tester Hazemeter Transmission Rate Haze Meter Test Aperture 7mm Overview:Haze Tester is a desktop high-precision haze tester, specializing in testing the haze and light transmittance of films, plastics, glass, LCD panels, and milky-white frosted materials. The flat desktop instrument is convenient for placing all kinds of test samples, which can be measured immediately, and the test is fast and accurate. The instrument adopts the integrating sphere principle, which can realize the total luminous flux received through, and can better measure the thicker materials and milky white frosted materials. Applications: automotive manufacturing and testing, glass products, lamps and lanterns, aerospace and other industries, protective film, solar film, PC, acrylic, diffusion panels, milky-white frosted plastic materials, haze and transmittance measurement, widely used in laboratories, factories or on-site testing. Features :Integrating sphere principle of full luminous flux reception, high precision and good stabilityThe instrument meets the CIE-A, CIE-C, CIE-D65 three standard illumination sources under the haze and full transmittance measurement.The instrument meets the compensation method, which can provide more accurate test results.The instrument has an open measurement area, which can meet the measurement of any size of samples.The instrument is equipped with Type-C interface, which can be connected to PC to realize the data transmission function.Measurement mode: single (SINGLE) measurement mode.Beeps during operation (single measurement)Large-capacity storage, can store 10 groups of data, each group of 200, a total of 2,0005 inch LCD color screen display, and has a Chinese and English dual-language version can be selected Parameter :Conforms to standardsASTM D1003/D1044,IS0 13468/IS014782,JIS K 7105,JIS K 7361,JISK 7136，GB/T 2410-08Light path structure0/dLight SourceCIE-A,CIE-C,CIE-D65Spectral ResponseCIE Spectral function Y/V ( A)Measurement ParametersHaze (HAZE), Transmittance (T)Measuring range0-100% Repeatability0.08Maximum Measured Thickness55mmTest hole size7mmInstrument weight2.97KGExternal Dimension200mm*200mm*277mmPower sourceDC12VDisplay5 inch color screenWorking Temperature0℃-50℃
