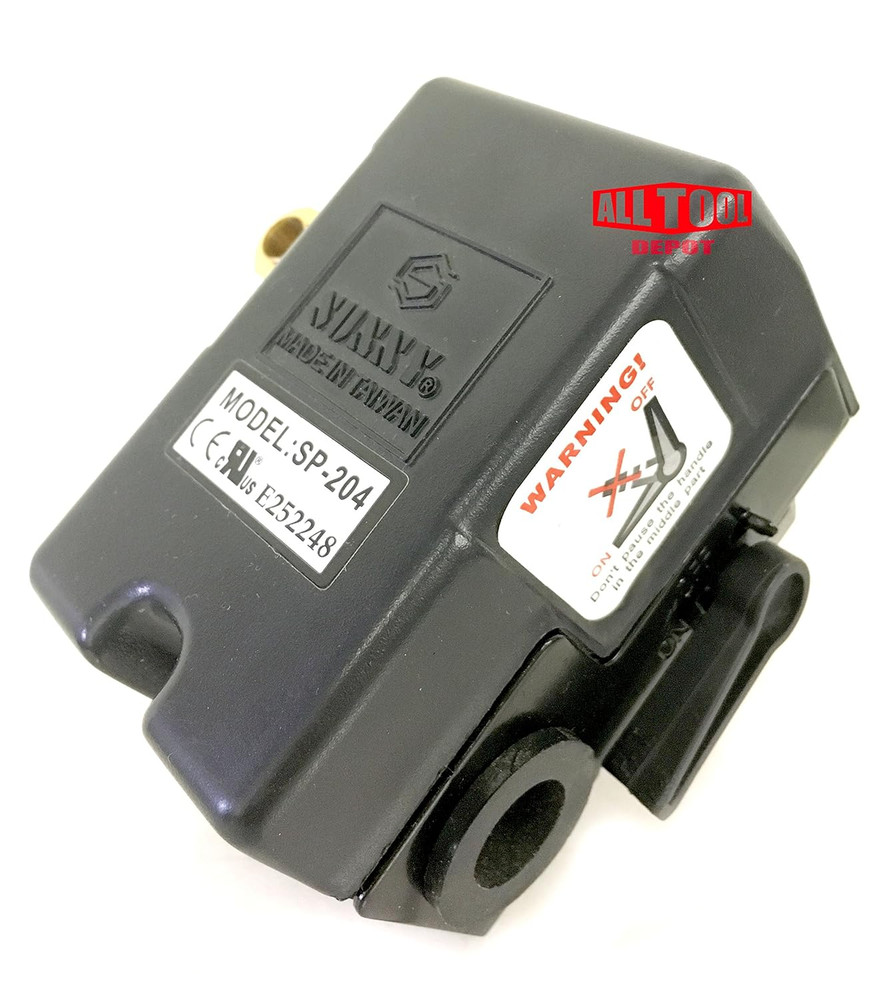

Heavy Duty Air Pressure Switch Sunny H4, 4 Port, 140-175 PSI, 25 Amp, Auto/Off C
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Does not apply |
| Item Model Number | SU-H4_a |
| Current Rating | 25 Amps |
| Actuator Type | Rotary |
| Country Of Origin | China |
| Connector Type | Screws |
| Terminal | Screw |
| Operating Voltage | 230 Volts |
| Circuit Type | 4 way |
| Switch Type | Pressure Switch |
| Type | Does not apply |
Heavy Duty SUNNY 140-175 PSI air compressor pressure switch, 4 Ports.MAX PRESSURE: 200 PSI MIN CLOSE: 60 PSI, 25AMPDIFFERENTIAL: 28-40 PSI¼" COMPRESSION UNLOADER VALVE CONNECTION, ¼" FEMALE NPT TANK CONNECTION.1PH: 115v,230v; 3PH: 230V,575V; DC: 32V,115V,230V This Sunny SU-H4 air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 175 psi. The switch have four 1/4" NPSF internal fluid connection. The adjustable cut-out range is 60-200 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections. The maintained manual cut-out lever has auto and off positions.
