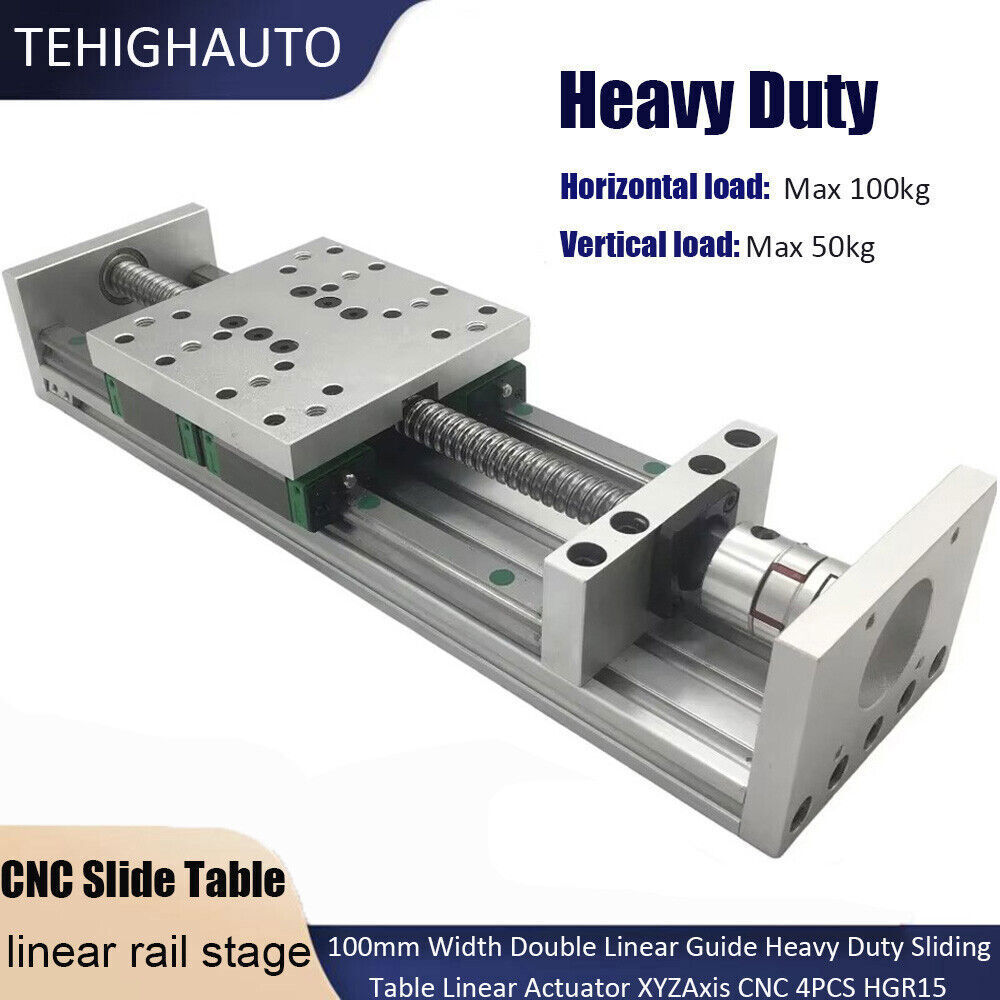

Heavy Duty Linear Guide Stage XYZ Axis CNC Sliding Table 4PCS*HGR15 100kg Load
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | TEHIGHAUTO |
| MPN | Does Not Apply |
| Accuracy | 0.03MM-0.05MM |
| Materials | aluminum alloy |
| Speed | ≤500MM/s |
| Voltage | 24V |
Slide table Product parameter ●Model: SXG120*120 ●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) ●Ballscrew accuracy: C7 level ●Effective stroke: 50mm-1200mm Optional ●Total length: Effective stroke+207mm ●Mobile panel size: 120*120mm ●Slide width: 100mm ●Guide diameter: 15mm ●Guide Type: 2*HGR15 ●Slider Type:2*HGH15CA ●Horizontal load: Max 100KG ●Vertical load: Max 50KG ●Maximum speed: 500mm/s ●Ballscrew Repeat positioning accuracy: 0.02-0.03mm ● Supported motor bracket : Nema 23 /34stepper motor;60/80 Sevor Motor ●Ballscrew and linear rail material: Carbon steel and bearing steel ●Base plate material: Aluminium alloy Heavy Duty Linear Guide Stage XYZ Axis CNC Sliding Table 4PCS*HGR15 100kg Load Package List ●If you choose " For Nema23 Bracket ": 1* SXG120*120 Sliding Table 1* 8mm Coupling For Nema 23 57mm Stepper Motor ●If you choose " For Nema34 Bracket ": 1* SXG120*120 Sliding Table 1* 14mm Coupling For Nema 34 86mm Stepper Motor ●If you choose "For 60 Servo Bracket": 1* SXG120*120 Sliding Table 1* 14mm Coupling For 60mm Servo Motor ●If you choose "For 80 Servo Bracket": 1* SXG120*120 Sliding Table 1* 19mm Coupling For 80mm Servo MotorNote1.3D drawings can be obtained by contacting customer service2.To build XZ, XY, XYZ axis, it is necessary to customize the connecting plate, please contact customer service for quotation. 3. If you need a slide table with a stepper motor and driver, please contact customer service for quotation. Slide table Product parameter●Model: SXG120*120 ●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)●Ballscrew accuracy: C7 level●Effective stroke: 50mm-1200mm Optional●Total length: Effective stroke+207mm●Mobile panel size: 120*120mm●Slide width: 100mm●Guide diameter: 15mm●Guide Type: 2*HGR15●Slider Type:2*HGH15CA ●Horizontal load: Max 100KG ●Vertical load: Max 50KG●Maximum speed: 500mm/s●Ballscrew Repeat positioning accuracy: 0.02-0.03mm● Supported motor bracket : Nema 23 /34stepper motor;60/80 Sevor Motor●Ballscrew and linear rail material: Carbon steel and bearing steel●Base plate material: Aluminium alloy PaymentDelivery detailsTerms of salesAbout usContact usPayment1. All payments must be prepaid.2. We accept multiple payment.Delivery details1. We'll pay for export custom tax,Buyer should pay for import custom tax if needed.2. packages will be sent out within 5 working days after the payment is received.3. Order placed on the weekends will be handled on next Monday or Tuesday (holiday excluded).4. We regret that we can not be responsible for any wrong or undeliverable addresses.Terms of sales1.We automatically submit positive feedback to our buyer once the payment is cleared.2. if you are satisfied with our product, please do the same for us, leave Positive Feedback with Four 5-star DSR (Detailed Selling Rating)for us, which means a lot to us, thanks in advance.3. Please Do not leave Negative orNeutral Feedback before Contacting us, leave negative feedback and argue can not solve any problem and we will work with you to resolve those problem.4. For any problem you have met about the product, please feel free to contact us via Ebay Message or E-mail.We always reply messageswithin One business day, butexcept holidays.About usReturn & Warranty:1. We guarantee against any defective products.2. We provide 30 days money back on non-defective, undamaged, unused and resalable products. Restocking fee and other fee may apply upon the condition of returned products. Shipping and handling fees are non-refundable.3. For any returned product, please contact us through ebay message first, We will work on resolving your particular case ASAP.Contact usAny question please feel free to contact us, we will respond within 1 bussiness day or less, except holidays.On Dec 20, 2024 at 10:02:25 PST, seller added the following information:
