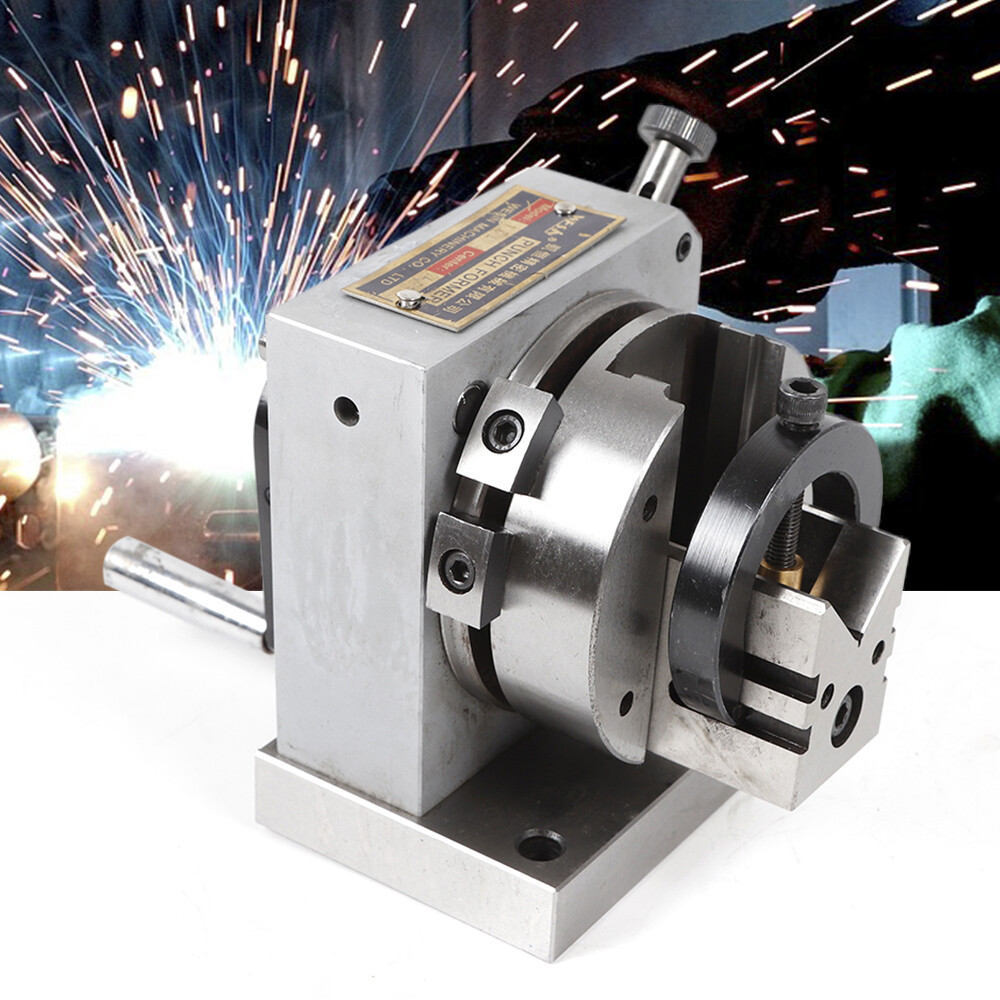

High Precision Pin Grinder Punch Former Single One Way Grinder Grinding Machine

USD 246.79 USD

SKU: vnSJaNkO

Brand: Unbranded

GTIN: Does not apply

Condition: New

Tags: 100mm 200mm 25mm 3-30mm 48mm 80 mm Grinding Punch Pin Grinder sks3 sub-degree 15° Unbranded

Categories: Heavy Equipment, Parts & Attachments

Specifications

Machine Type	Punch Pin Grinder
Function	Grinding
Height Of Rotation Center	80 mm
24sub Division	sub-degree 15°
Clamping Diameter In V-solt	3-30mm
Clamping Up & Down In-solt	25mm
Max. Wheel Diameter	200mm
Convex R Triming Range	48mm
Concaner Triming Range	100mm
Main Material	sks3
Brand	Unbranded

Specification Main Material: Sks3 Color: Silver Package Size: 33*23*20cm/13*9.05*7.9in Punch Former Size: 19.7*10.8*13.3cm/7.76*4.25*5.24in Trim Arm Size: 15.6*6.5cm/6.14*2.56in Net Weight: About 9kg/19.84lbs Height Of Rotation Center:80mm/3.15in 24sub Division: Sub-Degree 15° Clamping Diameter In V-Solt: 3-30 mm/0.12-1.2in Clamping Up & Down In-Solt: 25mm/0.98in Max. Wheel Diameter: 200mm/7.9in Convexr Triming Range: 48mm/1.9in Concaner Triming Range: 100mm/3.9in Accuracy 0.01-0.008mm Package Included 1*Punch Former 1*Trimming Arm 1*Packing Box 1*English and Chinese Manual.
