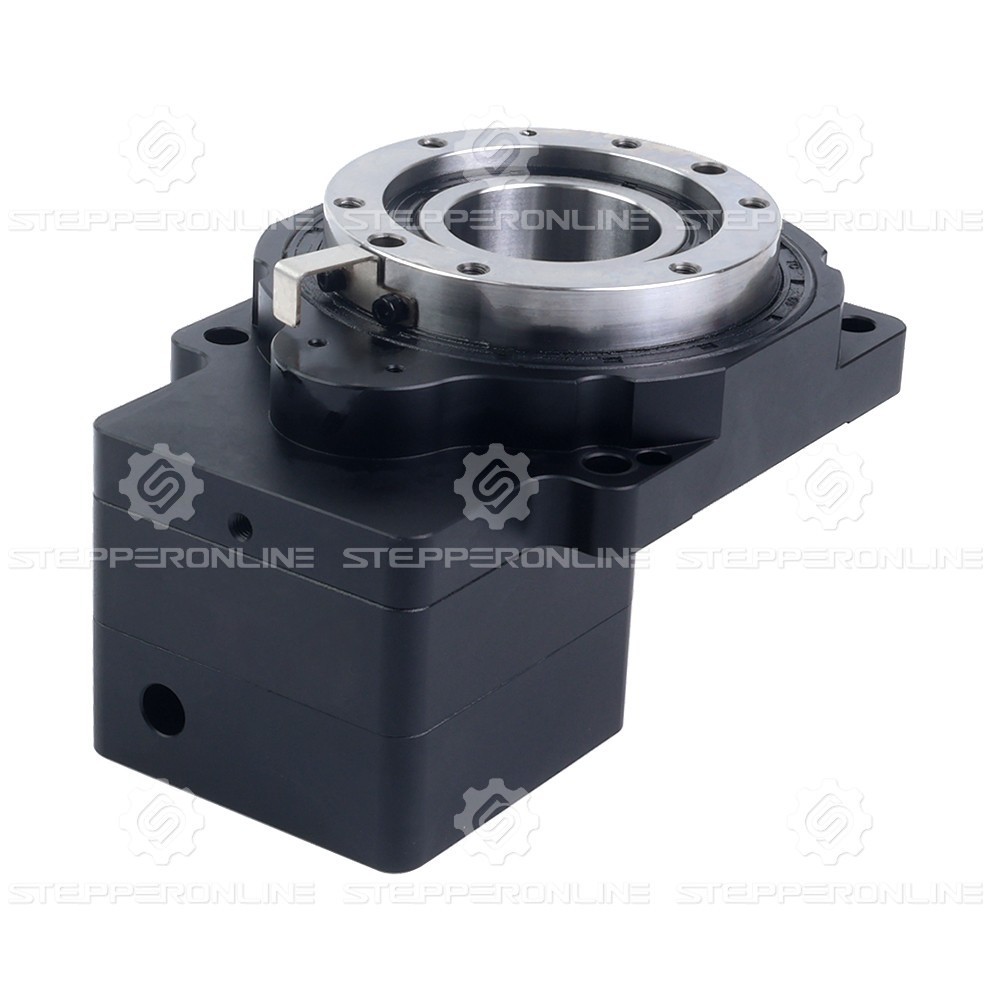

Hollow Rotary Actuator Platform 85mm 5:1 Backlash 3arc-min for 60mm Servo Motor

USD 180.25 USD

SKU: LqYznzmi

Brand: STEPPERONLINE

MPN: HRP85KK-G5-D14

GTIN: 742803042336

Condition: New

Tags: #51 ±15arcsec ≤0.010mm 0742803042336 1 min 300rpm 32mm 33mm 3arcmin 60 x 60mm 74.2mm 742803042336 85 x 85mm China HRP85KK-G5-D14 IP40 Lubricating Grease STEPPERONLINE Φ14mm

Categories: HVAC & Refrigeration: Parts & Accessories

Specifications

Brand	STEPPERONLINE
MPN	HRP85KK-G5-D14
Country/Region Of Manufacture	China
UPC	742803042336
EAN	0742803042336
Gear Ratio	5:1
Input Shaft Diameter	Φ14mm
Waterproof Rating	IP40
Position Accuracy	3arcmin
Repeated Position Accuracy	±15arcsec
Permissible Output Speed	300rpm
Platform Parallelism	≤0.010mm
Platform Jumping	≤0.010mm
Lubrication Method	Lubricating Grease
Platform Frame Size	85 x 85mm
Mounting Flange Size	60 x 60mm
Maximum Input Shaft Length	32mm
Diameter Of Hollow Section	33mm
Platform Height	74.2mm

This hollow rotary actuator platform fits for standard 60mm x 60mm servo motors. It features a gear ratio of 5:1, permissible torque of 12.00Nm(1699.34oz.in), 3arcmin positioning accuracy and 15arcsec repeated positioning accuracy.
