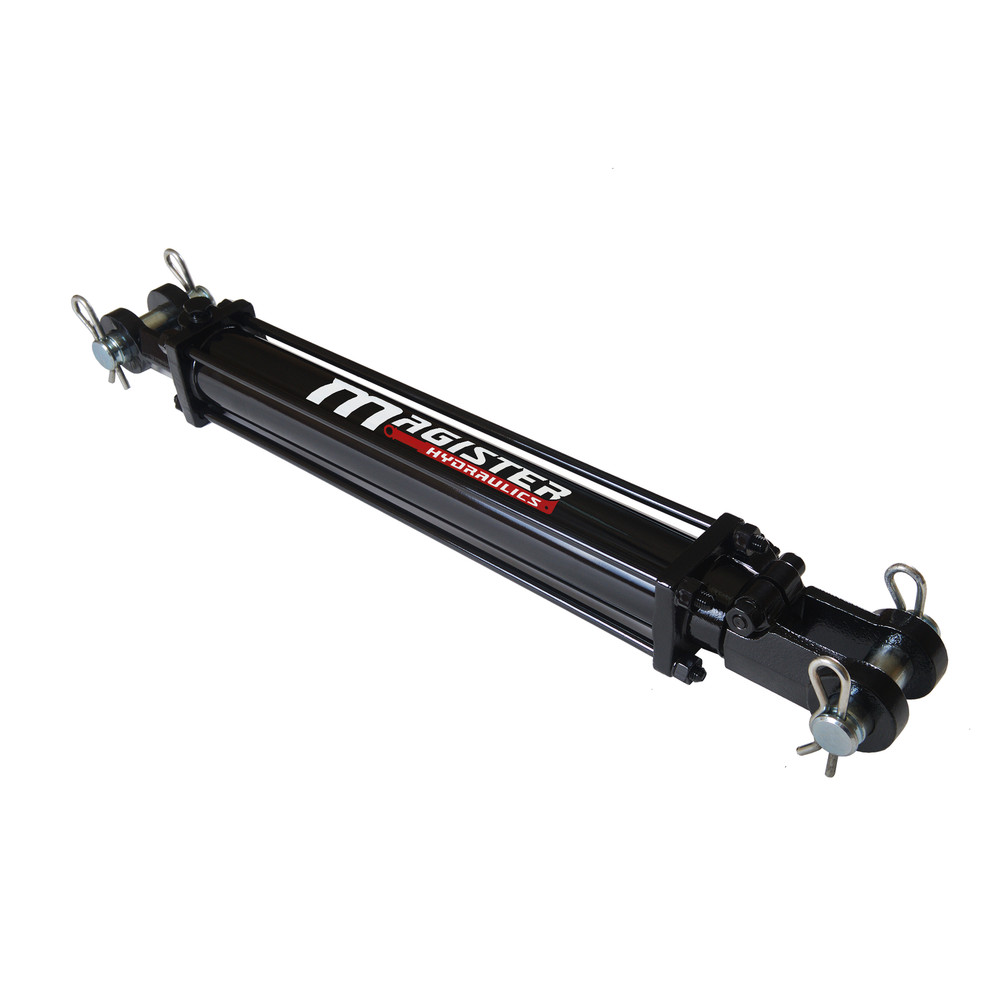

Hydraulic Cylinder Tie Rod double action 2″ bore 36″ stroke 2500 psi 2×36 new
USD 224.70 USD
Specifications
| MPN | TRC 2x36 |
| Suitable Media | Hydraulic Fluid |
| Maximum Pressure | 2500 |
| Country/Region Of Manufacture | Bulgaria |
| Stroke Length | 36" |
| Cylinder Action | Double-Acting |
| Cylinder Type | Tie-Rod Cylinder |
| Brand | Magister Hydraulics |
Hydraulic Cylinder TRC 2x36 Tie Rod Double Acting Hydraulic Cylinder Bore: 2" Stroke: 36" Rod: 1.125" Retracted: 46.25" Extended: 82.25" Pin Size: 1" Port Size: 3/8 NPT Column Load: 2,600 lbs Work Pressure: 2500 PSI Color: Black.
