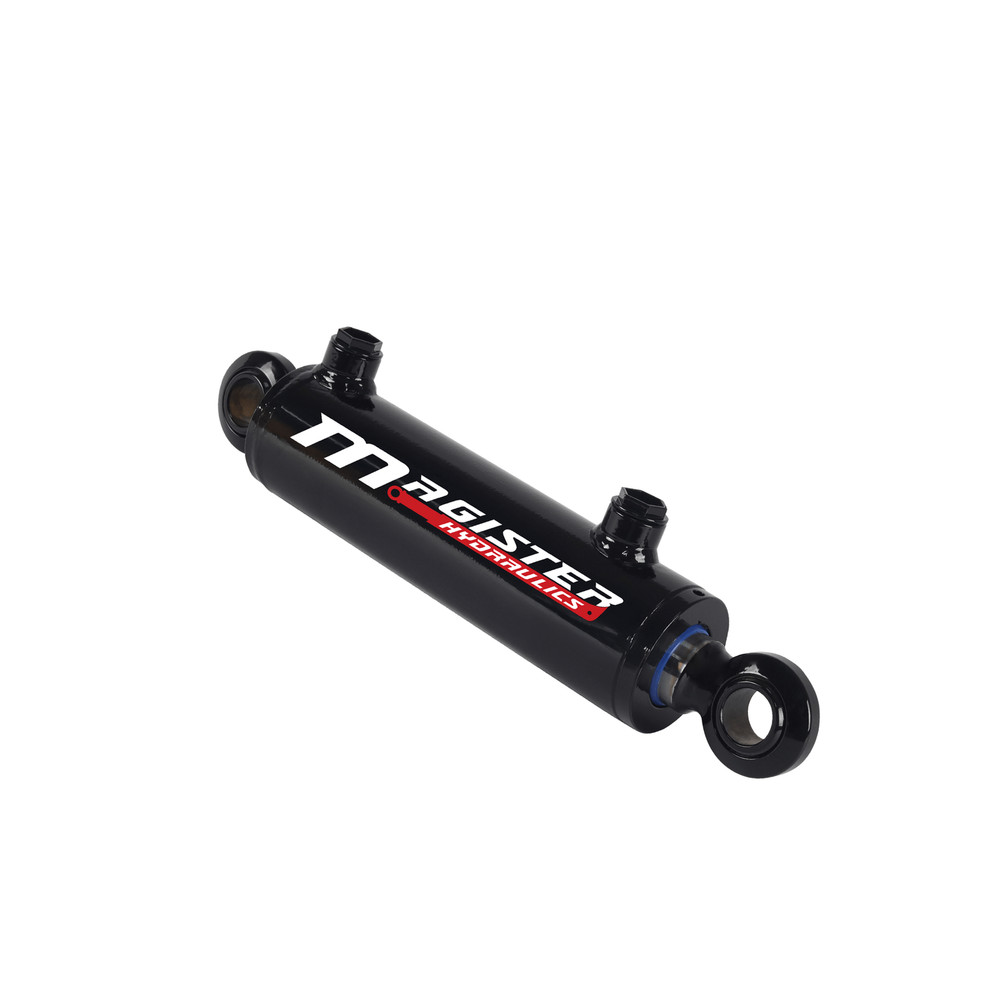

Hydraulic Cylinder Welded Double Acting 2.5″ Bore 10″ Stroke Swivel Ball/Eye
USD 234.15 USD
Specifications
| Material | Steel |
| MPN | WSB 2.5x10 |
| Brand | Magister Hydraulics |
| Model Year | 2025 |
| Type | Hydraulics |
| Model | WSB 2.5x10 |
| Compatible Equipment Make | Universal |
| Country/Region Of Manufacture | Bulgaria |
| Equipment Make | Magister Hydraulics |
| Part Type | Hydraulics |
| UPC | 850054386892 |
Hydraulic Cylinder WSB 2.5x10 Welded Double Acting Hydraulic Cylinder Bore: 2.5" Stroke: 10" Rod: 1.5" Retracted: 17.5" Extended: 27.5" Pin Size: 1" Port Size: SAE 8 Column Load: 14,430 lbs Work Pressure: 3500 PSI Color: Black.
