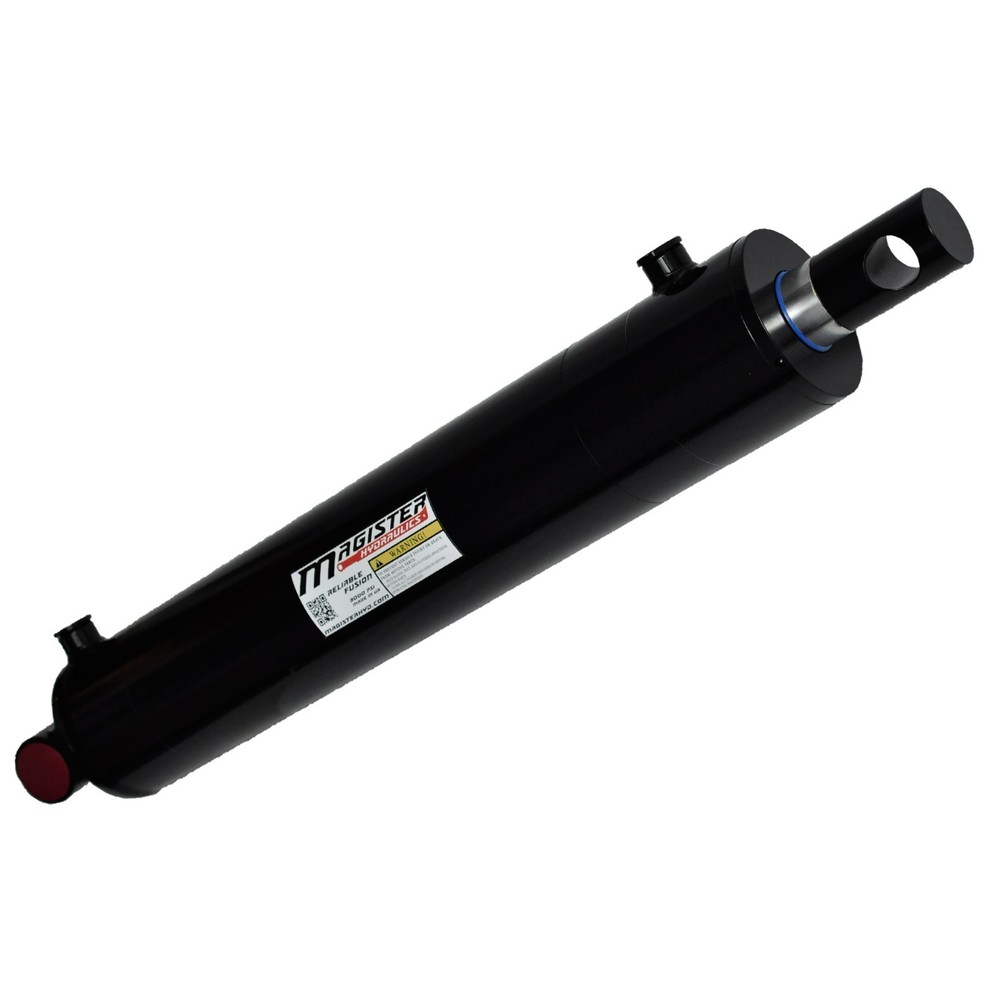

Hydraulic Cylinder Welded Double Acting 3″ Bore 20″ Stroke PinEye End 3×20 NEW
USD 296.10 USD
Specifications
| Brand | Magister Hydraulics |
| Model Year | 2016 |
| Model | WPE 3x20 |
| MPN | WPE 3x20 |
| Material | Steel |
| Compatible Equipment Make | Universal |
| Country/Region Of Manufacture | Bulgaria |
Welded Double Acting Hydraulic Cylinder Bore: 3" Stroke: 20" Rod: 1.5" Retracted: 28" Extended: 48" Pin Size: 1" Port Size: SAE 8 Column Load: 21,200 lbs Work Pressure: 3500 PSI Color: Black.
