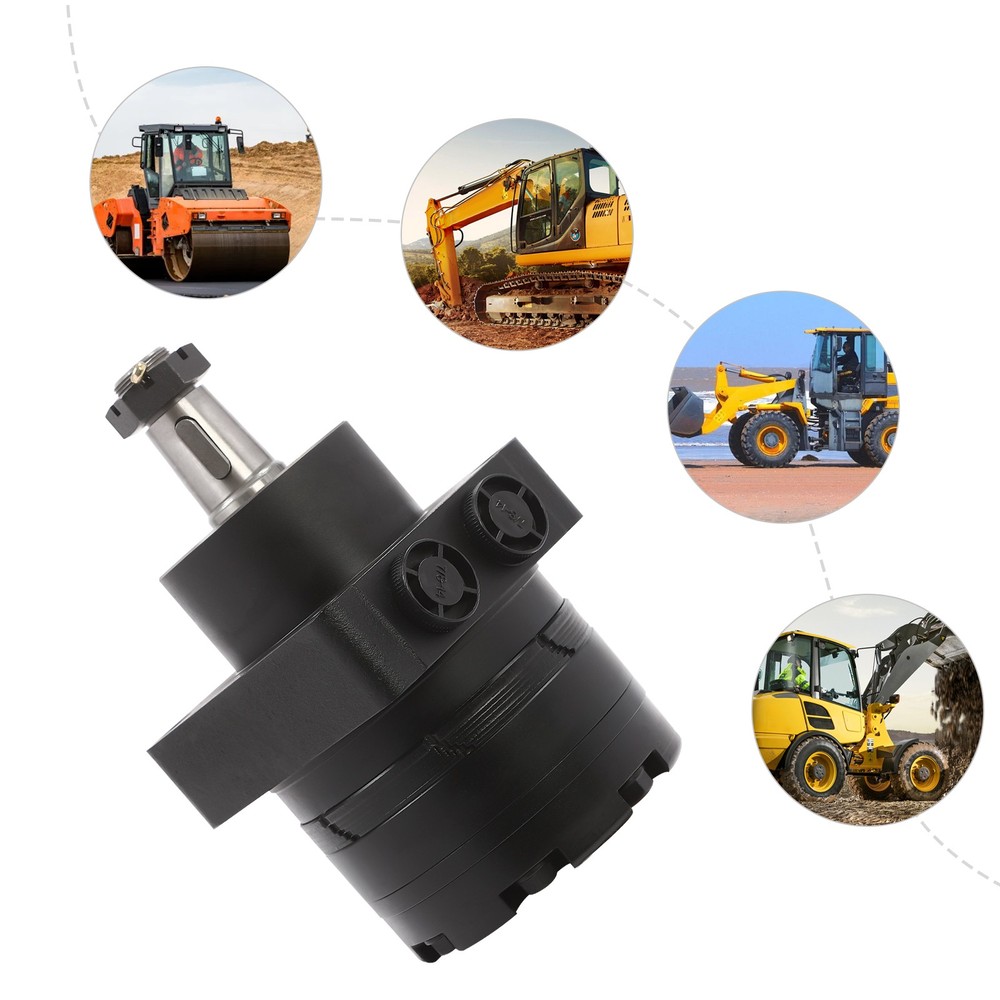

Hydraulic Motor, Hydraulic Wheel Motor, Hydraulic Motor for HGM-15E-3138 New
USD 245.92 USD
Specifications
| Brand | TBvechi |
| Product No | HGM-15E-3138 |
| Color | Black |
| Style | Modern |
| Material | Cast Iron |
| Process | Spray Painting |
| Displacement | 250CC |
| Max. Flow Rate | 70L/18.49 Gal/min |
| Max. Speed | 290 RPM |
| Max. Pressure | 20.5 Mpa |
| Max. Torque | 700 N·m |
| Max. Power | 17.5 kW |
| Max. Back Pressure | 5 MPa |
| Maximum Operating Temperature | 80°C/ 176℉ |
| Shaft | 1-1/4'' Taper Shaft |
| Recommended Anti-wear Hydraulic Oil | No. 68 |
| Product Size | 12.7*22.93cm/5*9.03in |
| Gross Weight | 13.5kg/ 29.76 lbs |
Specifications Product No: HGM-15E-3138 Color: Black Style: Modern Material: Cast Iron Process: Spray Painting Assembly Required: No Displacement: 250CC Max. Flow Rate: 70L/18.49 Gal/min Max. Speed: 290 RPM Max. Pressure: 20.5 Mpa Max. Torque: 700 N·m Max. Power: 17.5 kW Max. Back Pressure: 5 MPa Maximum Operating Temperature: 80°C/ 176℉ Shaft: 1-1/4'' Taper Shaft Number of Flange Holes: 4 Recommended Anti-wear Hydraulic Oil: No. 68 Product Size: 12.7*22.93cm/5*9.03in Gross Weight: 13.5kg/ 29.76 lbs Package Size: 32*17*20 cm/ 12.60*6.69*7.87 in Package Included 1* Hydraulic Motor.
