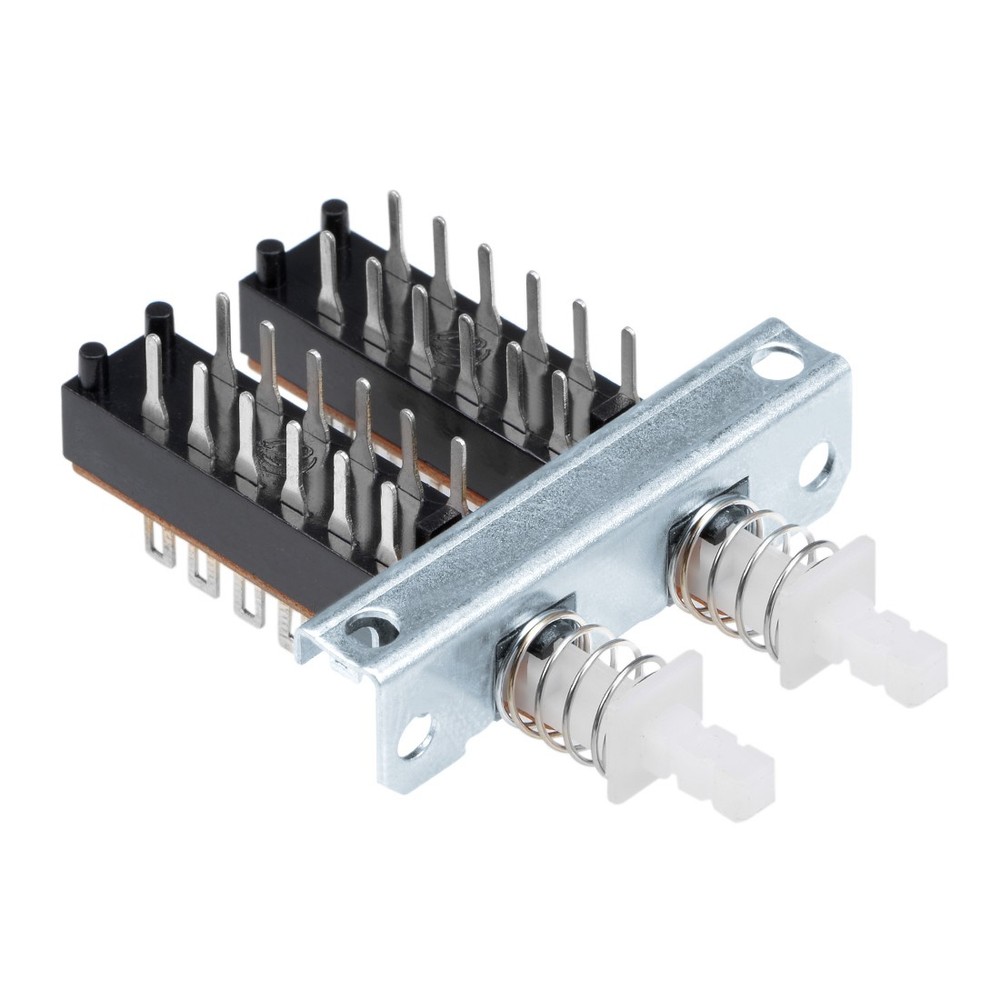

Interlock Push Button Switch Piano Type 4PDT 12 Pin 2 Rows

Specifications

Specifications:Material: Plastic, MetalSwitch Operation: InterlockContact Configuration: 4PDTTerminal Type: Straight Through HolePin Quantity:12Each Pin Pitch: 4mmPosition Quantity: 2End Width: 9mm / 0.35-inchMounting Distance: 5mm / 0.20-inchMounting Hole Distance: 34.5mm / 1.39-inchEach Cap Part Distance: 15mm / 0.59-inchCap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)Overall Size: 55 x 41 x 17mm / 2.17-inch x 1.61-inch x 0.67-inch(L*W*H) Package Contents:1 x Push Button Switch Description:Interlock contact, 12 pins, DIP through hole mounting.Used in the of electronic products, household appliances and more.High precision mechanism design offers operation and long service life. .
