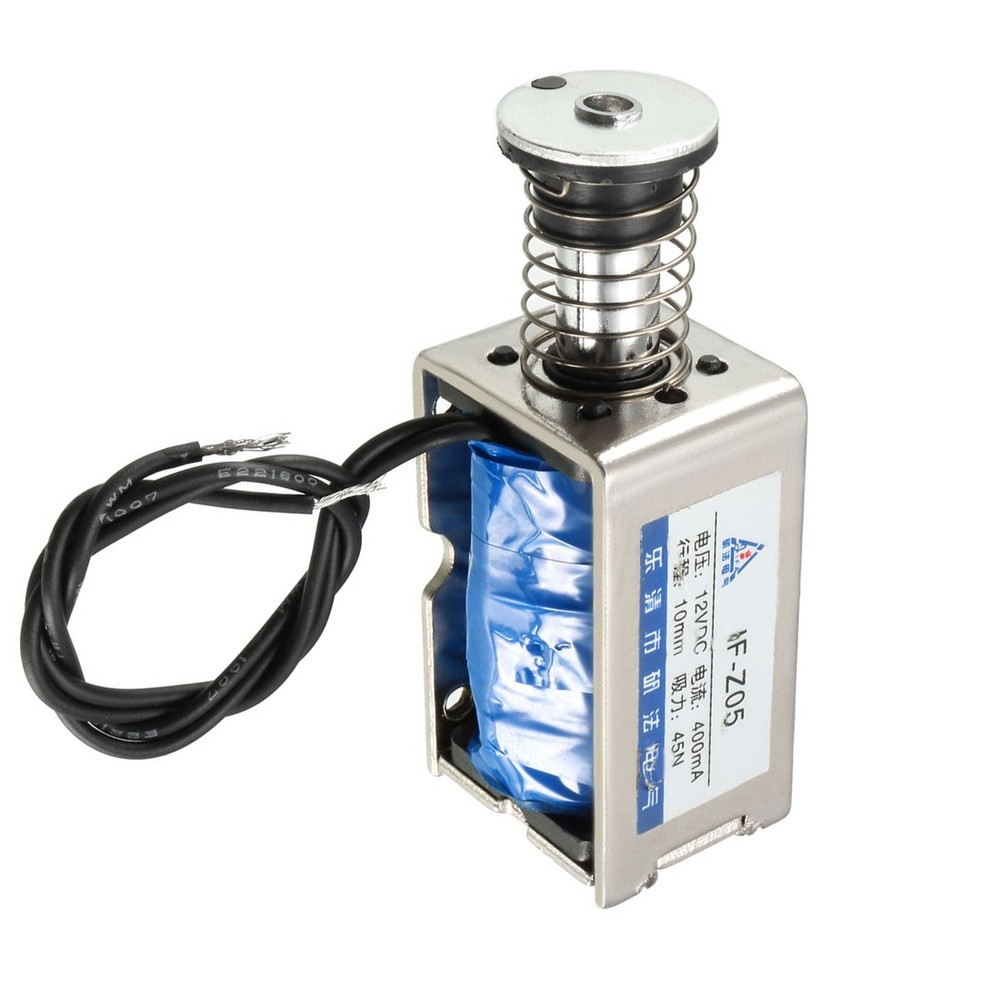

JF-Z05 45N Pull Push Type Open Frame Linear Motion Solenoid Electromagnet
USD 18.63 USD
Specifications
| Material | Metal |
| Net Weight | 185g |
| Model | JF-Z05 |
| Main Color | Silver Tone,Blue,Black |
| Country Of Manufacture | CHINA |
| Brand | Metallixity |
| Cable Length | 180mm / 7.09" |
| Rated Voltage | DC 12V |
| Force | 45N |
| Type | Push Pull Type |
| Current | 400mA |
| Travel | 10mm |
| Push Bar Dia | 20mm / 0.79" |
| Total Length | 83mm / 3.27" |
| Mounting Hole Dia. | 3.3mm / 0.13" |
| Power | 4.8W |
| UPC | 636939712068 |
【FEATURE】- DC 12V 400mA 45N Force 10mm Stroke Push Pull Solenoid Electromagnet【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high conductivity【NOTED】- As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
