K-type Thermocouple Wire AWG 20 Stranded Wire w. PVC Insulation Extension 1 yard
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Temperature Range | - 58 to 221 degree F |
| MPN | K-AWG-20-Stranded-PVC |
| Thermocouple Type | K-type |
| Country/Region Of Manufacture | China |

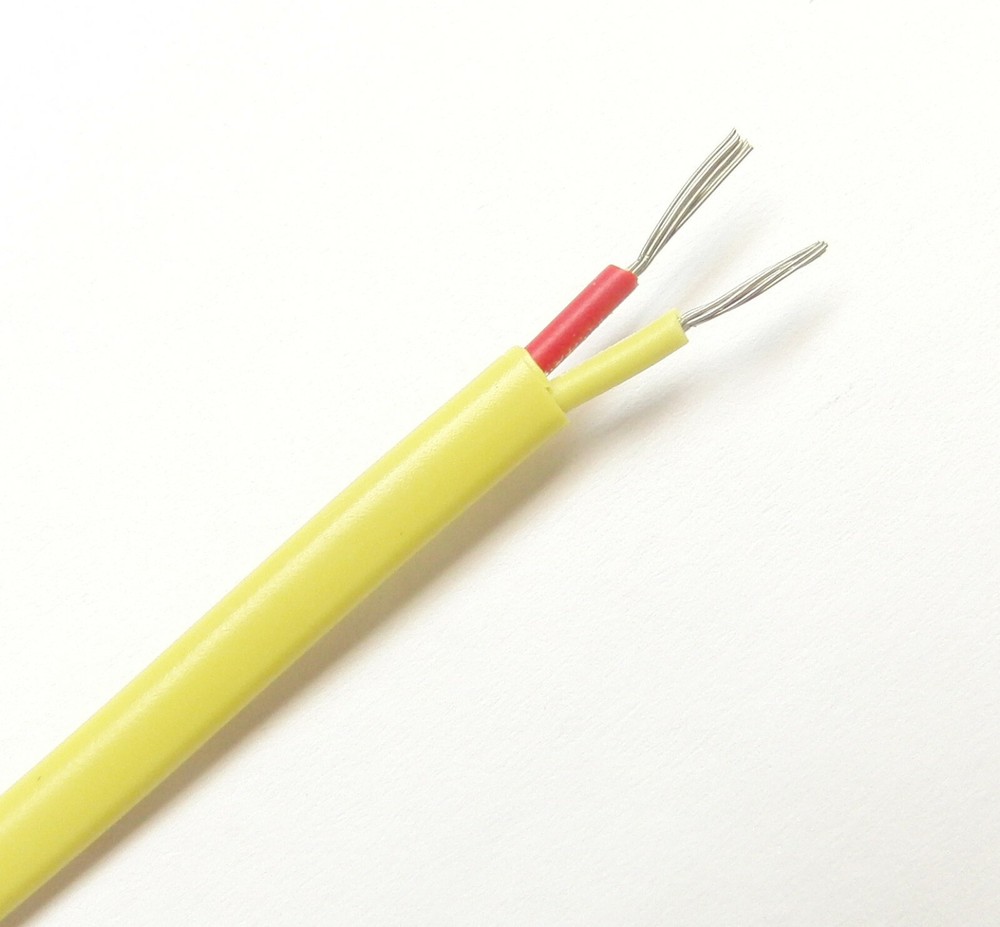

AWG 20 Stranded K-type Thermocouple Wire with PVC Insulation - 1 yard or multiples of 1 yard - This is a k-type thermocouple wire with yellow PVC insulation, which is good up to about 105 °C or 221 °F. The temperature limit is for the insulation, it starts to soften. The wire itself can measure the full K-type temperature range, and when you use it as a extension wire it can be used with high temperature ceramic thermocouple sensors up to 2500 degree Fahrenheit. This k-type thermocouple wire can be used to make your own thermocouples for a wide range of applications, or to make your own extension wire. The chromel alumel wire is made to standard thermocouple specifications. This is a stranded wire with 7 filaments, it is more flexible than a solid wire and therefore especially useful for k-type extension wires. It is sold in 1 yard increments, so if you order 10 units of this, you will receive a single 10 yard long wire. Specification K-type Thermocouple wire for making thermocouple or extension wire Chromel / Alumel type K thermocouple wire with Standard Accuracy (whichever is greater): +/- 2.2 °C or +/- .75% Stranded wire, AWG 20 (0.8 mm), 7 strands x 0.3 mm each ANSI color coded PVC insulation, red = -, yellow = + Sold in 1 yard increments, 1 unit = 1 yard, order 10 units and you receive a 10 yard wire
