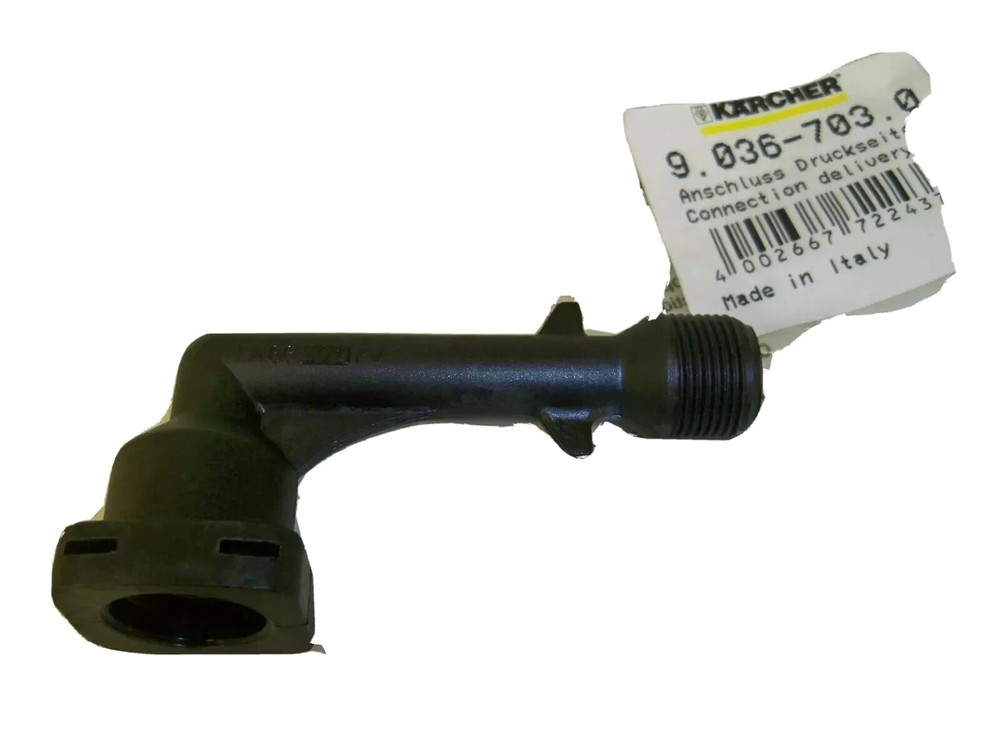

Karcher Discharge Outlet 9.036-703.0 or 90367030 OEM Part
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | KARCHER |
| Model | 90367030 |
| Country Of Manufacture | Italy |
| MPN | 9.036-703.0 |
| Country/Region Of Manufacture | Italy |
Karcher Original Part - 9.036-703.0 High pressure outlet (90367030) Discharge Outlet 1. Remove the top and front coverUse a screwdriver to remove the screws from the top and front coverWith the screws removed you can remove the covers and set them aside. 2. Remove the metal forkUse a pair of needle-nose pliers to pull the metal fork out of the outlet connector. 3. Pull the old connector off of the pump Lift up the connector and pull it out of the unit.4. Install the new connectorTransfer the o-ring from the old outlet connector to the new connector Then install the new connector onto the pump. 5. Replace the metal forkWith the new connector in place, you can reinstall the metal fork to secure it to the pump6. Replace the top and front coverPlace the covers back into their original position. Fits Models: K2.98/2.98M • K 2.26 M • K226M • K2.26M • K 226 M • K297* • K29X/29XM • K3.48 • K3.78M-PLUS • K386 • K 386 • K3.86M • K 3.86 • K 3.86 M • K3.86 • K3.87M • K3.96 • K3.98M/MD • K3.9XM • K3.97M • K 3.97 M • K397M • K 395 M • K39XM • K399M • K 3.99 M • K 399 M • K3.99M • K4.98M/MD • K2.21-Plus* • K2.26M • K2.38M • K3.67M120V60HzGFCI • K3.68M*US • K3.91M • K3.92M • K3.96M120V/60Hz • K4.91MD-Plus • K4.96 • K 1400-4F-TR (1.421-207.0) Pressure Washer K 1400-4F-WB (1.421-205.0) Pressure Washer K 2.21 TV (16011310) Pressure Washer K 2.26M (16016020) Pressure Washer K 2.26M (16016030) Pressure Washer K 2.38 M CCK (16011800) Pressure Washer K 2.58 M TV (16013520) Pressure Washer K 2.97M-4F-WB (1.421-213.0) Pressure Washer K 2.97M-Plus (1.421-212.0) Pressure Washer K 2.97M-VPS-PL-WB (1.421-211.0) Pressure Washer K 3.47 M PLUS (16017200) Pressure Washer K 3.48 M PLUS (16017100) Pressure Washer K 3.49M PLUS (16017300) Pressure Washer K 3.67M (16017020) Pressure Washer K 3.67MD PLUS (16017010) Pressure Washer K 3.68MD PLUS (16017420) Pressure Washer K 3.69 (16017040) Pressure Washer K 3.78M-Plus (1.423-953.0) Pressure Washer K 3.86 M (1.636-122.0) Pressure Washer K 3.86 M-PLUS (1.636-121.0) Pressure Washer K 3.91M (16369020) Pressure Washer K 3.91M (16369050) Pressure Washer K 3.92 M Plus (1.423-854.0) Pressure Washer K 3.96M (16361040) Pressure Washer K 3.96M (16361050) Pressure Washer K 3.96M-PLUS (16361070) *MX Pressure Washer K 3.97M-4F-WB (1.423-105.0) Pressure Washer K 3.97M-PL-WB (1.423-110.0) Pressure Washer K 3.97M-Plus (1.423-115.0) Pressure Washer K 3.97MD-4F-WB (1.423-104.0) Pressure Washer K 3.98M PLUS-WB (16366220) Pressure Washer K 3.98M-PLUS (14234510) *MX Pressure Washer K 3.98MD-4F (14234500) Pressure Washer K 3.99M-Plus (1.423-235.0) Pressure Washer K 3.99MD-PL-WB (1.423-234.0) Pressure Washer Additional Information SKU / Part # 9036703 Brand Karcher
