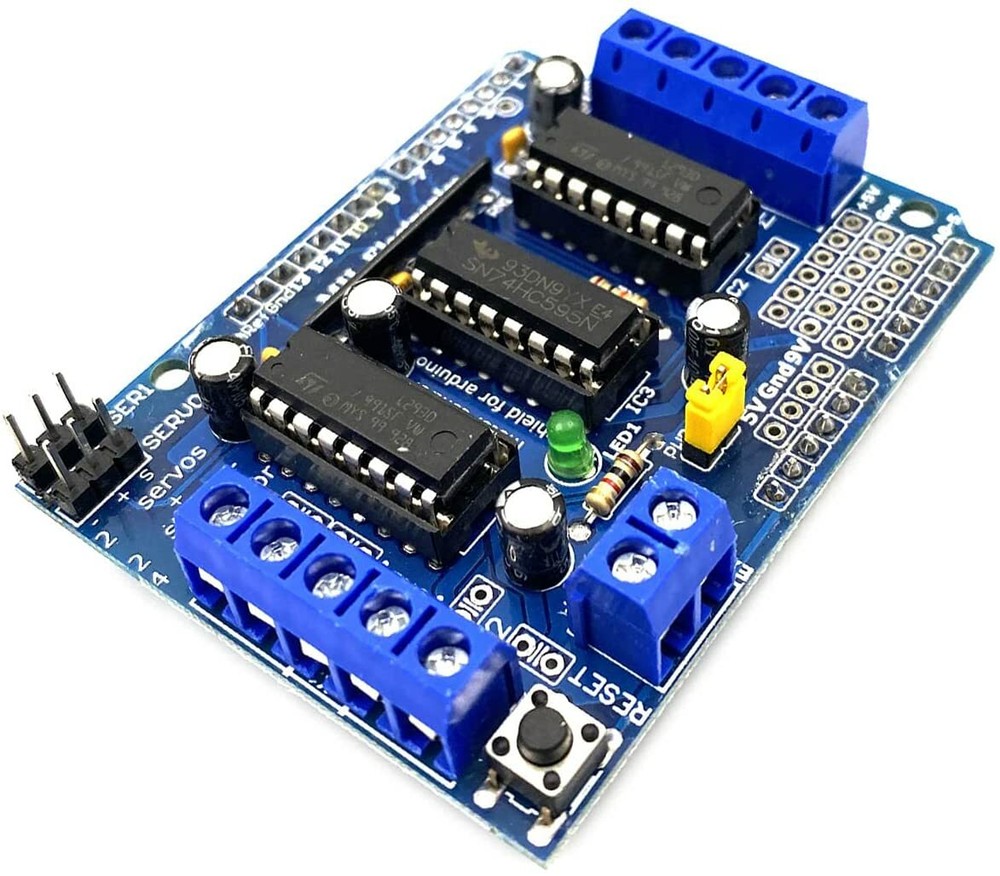

L293D Motor Drive Shield Expansion Board For Arduino Uno, MEGA2560 & Duemilanove
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Envistia |
| Model | L293D |
| Country/Region Of Manufacture | China |
L293D Motor Driver Shield Expansion Board - Works With Arduino Uno R3, MEGA2560 & Duemilanove This motor driver shield expansion board has two L293D motor driver chipsets, each with 2 H-Bridges, and can drive up to 4 bidirectional DC motors with individual 8-bit speed selection, or 2 stepper motors (unipolar or bipolar), single coil or double coil, interleaved or micro-stepping. It is ideal for building four-wheel robot platforms. The shield also comes with a 74HC595 shift register that extends 4 digital pins of the Arduino to the 8 direction control pins of the two L293D chips. The shield's 4 H-bridges provide up to 0.6A per bridge (1.2A peak) at voltages from 4.5 V to 36 V. This shield has pull down resistors to keep the motors disabled during power up. It also features a 2-pin terminal block to provide separate logic and motor external power supplies. This expansion board is compatible with Arduino Uno and Mega controllers, or other Arduino-style boards with compatible I/O pins. L293D Motor Drive Shield Features & Specifications:Up to 4 bidirectional DC motors and 4 PWM speed controllers (approximately 0.5% resolution)Up to 2 stepper motor forward and reverse control, single / double step control, staggered or micro-step and rotation angle control4-way H-bridge L293D chip provides 0.6A (peak 1.2A) current per bridge with thermal shutdown protection, 4.5V to 36VThe pull-down resistor ensures that the motor remains stopped at power-upTwo large terminal block connectors make wiring easier (10-22AWG)Removable jumper allows for a single power supply for both Arduino and motors, or two separate DC power supplies, one for the Arduino and one for the motorsReset button (the Arduino’s reset button brought up at the top of the shield for use) Package Includes:1x (1 piece) L293D Motor Drive Shield Expansion Board Get if faster! Stocks and ships from our US Colorado office for quick delivery. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
