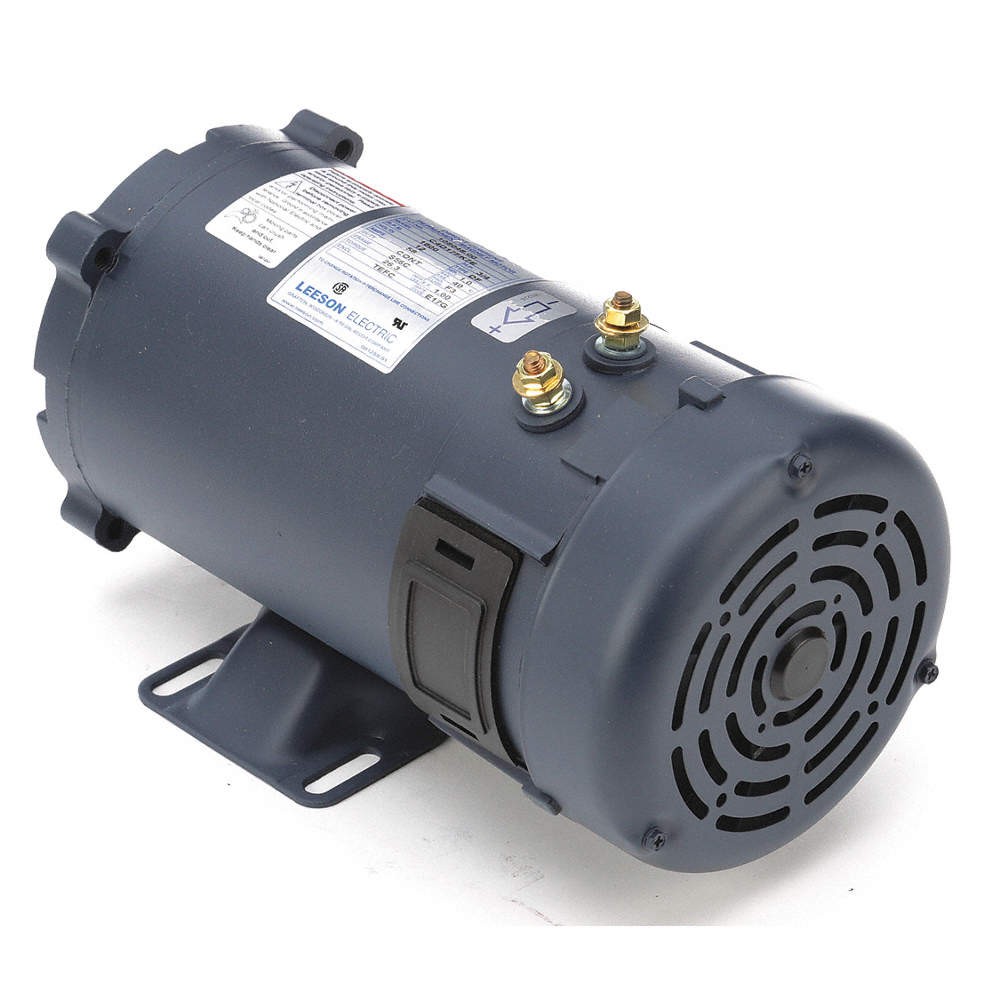

LEESON 108048.00 DC Motor,3/4 HP,1800 rpm,12V DC,56C,TEFC 48ZG50
USD 1140.25 USD
Specifications
| UPC | 0691720006726 |
| Actual Rated Input Voltage | 12 V |
| Rated Load (HP) | 3/4 |
| Base RPM | 1800 |
| Shaft Type | Keyed |
| Shaft Diameter | 5/8 in |
| MPN | 108048.00 |
| Insulation Class | F (Max 311°F) |
| Mounting Type | Face-Mounted |
| DC Stator/Winding Type | Permanent Magnet |
| Brand | LEESON |
| Reversible/Non-Reversible | Reversible |
| Service Factor | 1.00 |
| Nominal Rated Input Voltage | 12 V |
| Model | Meters |
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 3/4 HP, Nameplate RPM 1,800, Voltage 12V DC, 58.0 A Full Load Amps, 56C Frame, Full Load Torque 26.3 in-lb, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in, Brush Type External, Overall Length 13 5/16 in.
