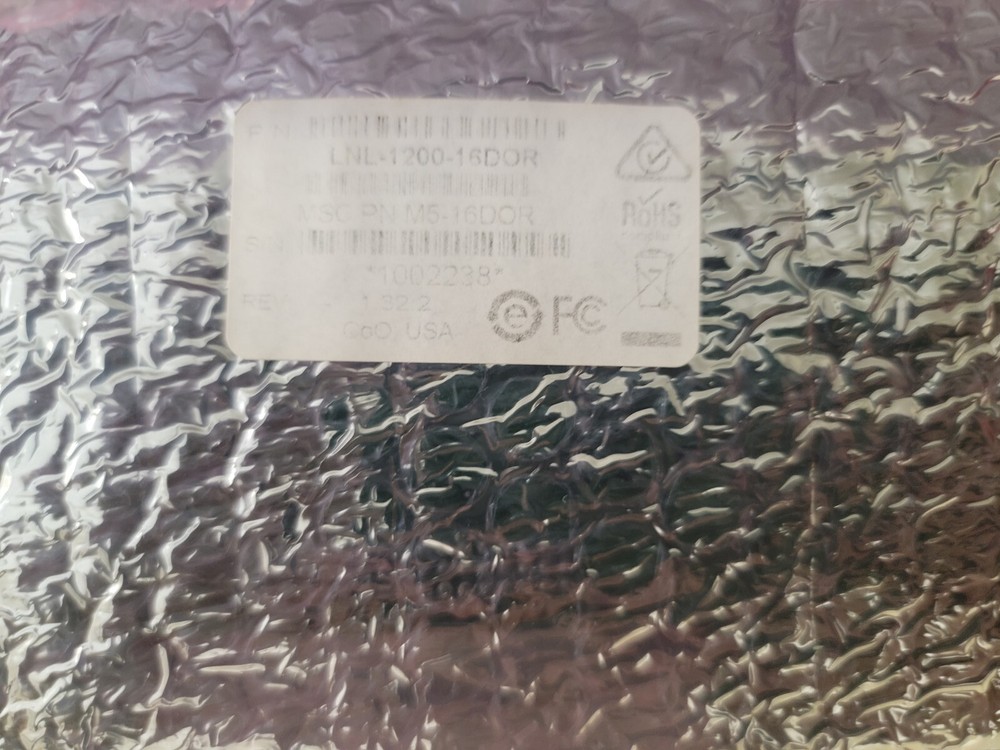

Lenel LNL-1200-16DOR LNL-1200 2 VDC 16 Relay Output Control Module
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Lenel |
| Model | LNL-1200-16DOR |
| MPN | Does Not Apply |
Lenel LNL-1200-16DOR LNL-1200 2 VDC 16 Relay Output Control Module Overview The LNL-1200-16DOR is the replacement for the legacy CASI 16DORboard (PN:110078001). The LNL-1200-16DOR supports 16 relay outputs. There are 8 Form-C relays, and 8 Form-A relays. Note: Each LNL-1200-16DOR uses one board address. Specifications Model Number: LNL-1200-16DOR Brand: Lenel Alt Part Number(s): LNL-1200-16DOR Product Type: Control Module Technical Description Brand: Lenel Model: LNL-1200-16DOR Power : Supplied from LNL-3300-M5 or LNL-8000- MCOM via backplane, 12 VDC +/- 10% (300mA) Communications Ports: Backplane: RS-485 Outputs: 8 Form-C Relay outputs, 2A@30VAC/VDC 8 Form-A Relay outputs, 2A@30/VAC/VDC Cabling Requirements: As required for load Output Voltage: 208 - 230 V AC Protocols: Web, SNMP, Telnet Temperature Storage: -65F to 185F (-55C to 85C) Temperature Operating: 32F to 158F (0C to 70C) Humidity: RHNC 5 to 95% Width: 3.5 Length: 10.25 Height: 0.69 Features Mercury Hardware for OnGuard, redesign to retrofit into Legacy CASI Controllers Replaces CASI 16DOR, field wiring plug compatible Supports 16 Relay Outputs, for controlling power for control devices (horns, lights, barriers, etc). 8 Form-C Relay outputs, 2A at 30VAC/VDC 8 Form-A Relay outputs, 2A at 30VAC/VDC Brand: Lenel Model: LNL-1200-16DOR Product Type: Control Module Power : Supplied from LNL-3300-M5 or LNL-8000- MCOM via backplane, 12 VDC +/- 10% (300mA) Communications Ports: Backplane: RS-485 Outputs: 8 Form-C Relay outputs, 2A@30VAC/VDC 8 Form-A Relay outputs, 2A@30/VAC/VDC Cabling Requirements: As required for load Output Voltage: 208 - 230 V AC Protocols: Web, SNMP, Telnet Temperature Storage: -65F to 185F (-55C to 85C) Temperature Operating: 32F to 158F (0C to 70C) Humidity: RHNC 5 to 95% Width: 3.5 Length: 10.25 Height: 0.69 Features Mercury Hardware for OnGuard, redesign to retrofit into Legacy CASI Controllers Replaces CASI 16DOR, field wiring plug compatible Supports 16 Relay Outputs, for controlling power for control devices (horns, lights, barriers, etc). 8 Form-C Relay outputs, 2A at 30VAC/VDC 8 Form-A Relay outputs, 2A at 30VAC/VDC
