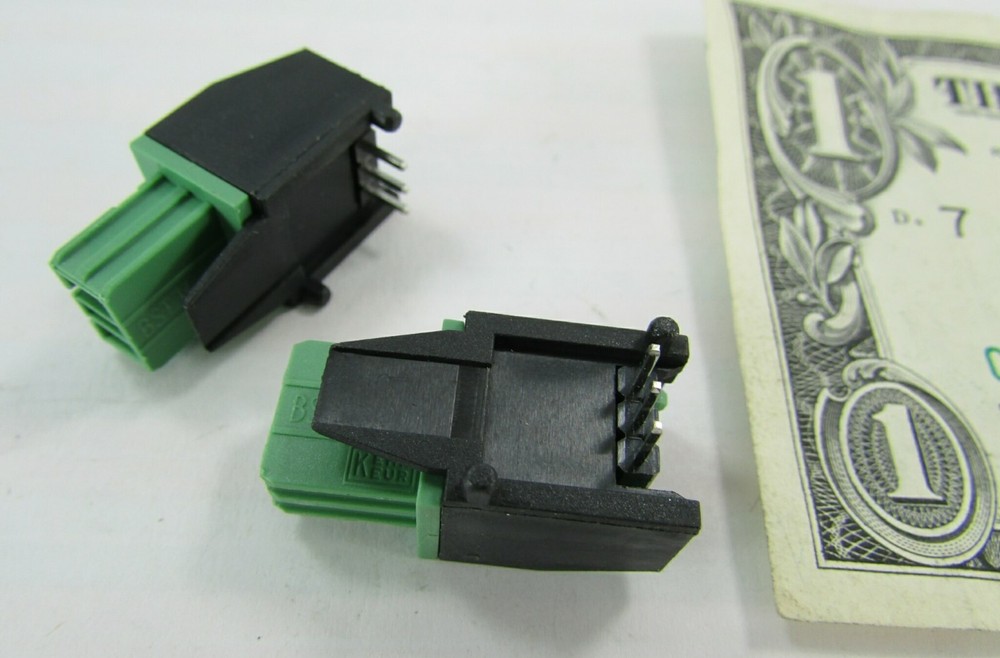

Lot 5 Wieland 3-Pin Female Gesis Connector Plugs BST14I2L B1 GN01, 93.421.0652.1
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Gender | Female |
| Degree Of Protection (IP) | IP20 |
| Compatible Mounting Type | Through Hole |
| Country/Region Of Manufacture | Germany |
| MPN | BST14I2L B1 GN01 |
| Body Material | Nylon |
| Brand | Wieland |
| Termination Type | Latch Lock |
| Article Number | 93.421.0652.1 |
| SELLER LOCATION | USA |
| Rated Voltage | 50V |
4156SD5F.04 New Wieland 3-Pin Female Gesis Connector Plugs, 90 Degree Angle Through Hole Solder / PCB Mount, Part Number BST14I2L B1 GN01, or 93.421.0652.1. Each bid quantity is for a Lot of Five (5) Pieces. You may bid / buy any number of lots, up to the total quantity available above. These were purchased at an electronics wholesale company liquidation earlier this year, and they were brand new in the original factory boxes. We packaged them in heavy Ziplok bags for resale. According to the manufacturer: General Rated current: 3 A Rated voltage: 50 V Pollution degree: 2 Mechanical coding: Yes Rated impulse voltage: 0.8 kV Lockable: self-locking (unlocking by hand) Color of coding/ contact carrier: green Marking of poles: 1+, 2- Color of separate adapter (if present): black Model Model: female Connection type: Soldering connection Angle of plug: Square Degree of protection (IP): IP20 built-in component: Soldering connection Material Housing material: Polyamide Halogen free: Yes Contact material: CuBe Fire load: 0.014 kWh Insulation components continous temperature: 100 °C Surface finish: Gilt Classification ECLASS 8.1 27440602 ETIM 7.0 EC002566 ETIM 6.0 EC002566 ETIM 5.0 EC002566 ETIM 4.0 EC002566
