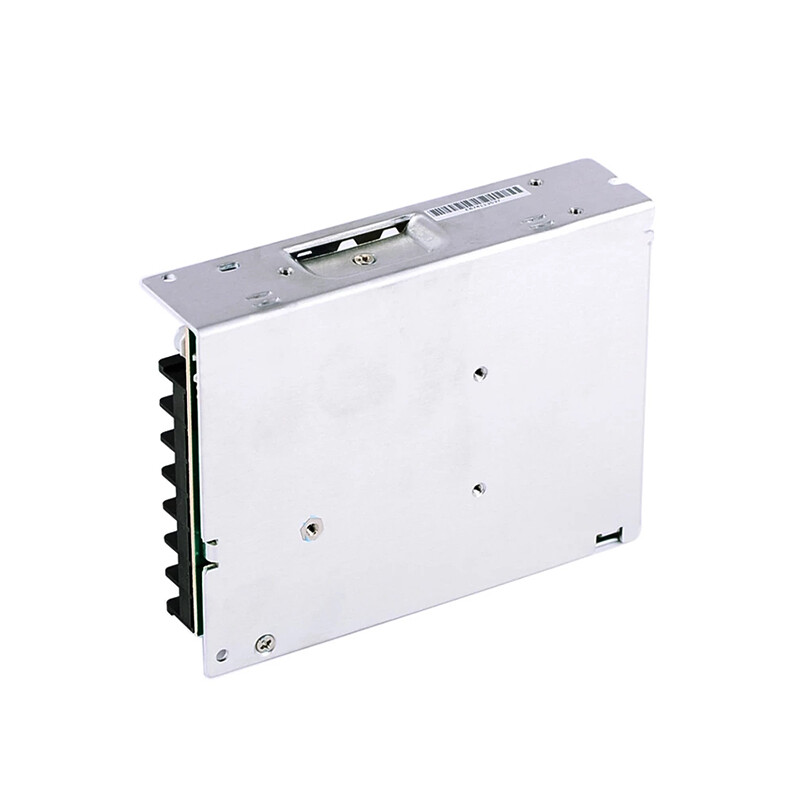

LRS-100-24 MEANWELL 100W 24VDC 4.5A 115/230VAC Enclosed Switching Power Supply
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| UPC | 742803046570 |
| EAN | 0742803046570 |
| Spannung & Leistung | 24VDC 4.5A LRS-100-24 |
| Mark | MEAN WELL |
| MPN | LRS10024 |
| Item Height | 1.2 in |
| Item Width | 3.8 in |
| Nominal Current Rating | 4.5 A |
| Color | Silver |
| Nominal Power Rating | 100 W |
| Item Depth | 5.1 in |
| Brand | MEAN WELL |
| Output Voltage Rating (DC) | 24 V |
| Nominal Voltage Rating (DC) | 24 V |
| Features | Universal Input |
| Mounting Style | Chassis Mount |
| Installation Area | Indoor |
| Construction Type | Enclosed |
MEANWELL LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS-100 that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement.LRS-100 has the complete protection functions and 5G antivibration capability; it is complied with the international safety regulations such as TUV BS EN / EN2368-1, BS EN / EN60335-1, BS EN / EN61558-1/-2-16, UL62368-1 and GB4943. LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications. Features Brand MEANWELL 24V DC 4.5A output AC input voltage range: 85 ~ 264VAC Rated power: 108W Universal AC input / Full range Withstand 300VAC surge input for 5 second Protections: Short circuit/ Overload / Over voltage Cooling by free air convection Miniature size and 1U low profile Compliance to IEC/BS EN/EN 60335-1 (PD3) and IEC/BS EN/EN61558-1, 2-16 for household appliances Operating altitude up to 5000 meters (Note.7) Withstand 5G vibration test LED indicator for power on No load power consumption < 0.3W Over voltage category III 100% full load burn-in test High operating temperatir up 70°C High efficiency, long life and reliability 3 years warranty Applications Industrial automation machinery Industrial control system Mechanical and electrical equipment Electronic instruments, equipments or apparatus Household appliances On Mar 27, 2024 at 00:55:26 PDT, seller added the following information:
