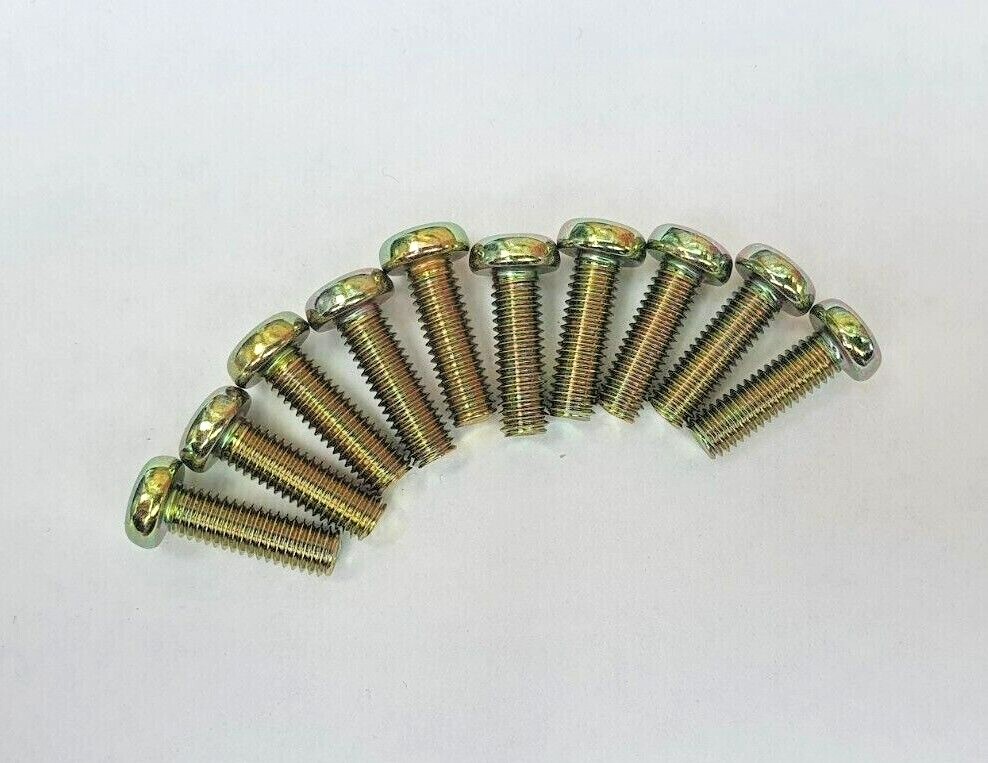

M5 J.I.S Japanese Industrial Standard Yellow Passivate Panhead Screws (6-35mm)
Specifications
| Return Postage Will Be Paid By | Buyer |
| Returns Accepted | Returns Accepted |
| After Receiving The Item, Your Buyer Should Cancel The Purchase Within | 30 days |
| Item Thickness | 5mm |
| Shape | Pan |
| MPN | Does Not Apply |
| Item Length | 6-35mm under head |
| Drive Style | Phillips |
| Mandrel Material | Steel |
| Unit Type | Unit |
| Grip Range | N/A |
| Number In Pack | 4, 10 |
| Finish | Yellow passivate |
| Holes Per Leaf | N/A |
| Item Diameter (Interior) | N/A |
| Item Diameter | Head diameter 8mm |
| Material | Zinc yellow passivate |
| Grade | 8.8 |
| Thread Size | 0.8mm |
| Brand | Zedparts |
| End Type | Flat |
| Type | J.I.S Screw |
| System Of Measurement | Metric |
| Country/Region Of Manufacture | Japan |
| Head Style | Pan head |
| Rail Height | 16mm |
All orders received after 3.30 will be shipped the next working day,M5 yellow passivate JIS screws. Length from under head- 6mm, 10mm, 12mm, 14mm, 16mm, 20mm, 25mm, 30mm, 35mm Pack of Four (4) or Ten (10) M5 Steel yellow passivated Japanese Industrial Standard (J.I.S) Philips Pan Head Kawasaki part numbers 220D 0506 to 220D 0535 These screws have a 0.8mm pitch and have dot on head to indicate these are post 1967 thread, not the pre 1967 0.9 pitch. We have sourced a supply from Japan and are now offering a range of these screws in M3,4,5 and 6 These M5 Phil Pan Head screws are often used on the carburettors ( float bowls and carb tops) small electrical switches, engine casings and points plates and will give an authentic look to your bike These screws have the smaller head diameter than standard Pan Head Screws and are Genuine Japanese Industrial Standard screws Made in Japan. Technical Data Screw diameter M5 Machine screw Thread Pitch 0.8 No. of Phillips recess 2 Head Diameter 9 a Tolerance -0.6 Head Thickness 3.3 b Tolerance +/-0.15 We now have in stock M5 JIS screws with a 0.9 pitch which some of the older Japanese bikes used. Please see our other listings We do engine screw kits for motorcycles using J.I.S screws in both stainless and zinc plated steel. Thank you for looking
