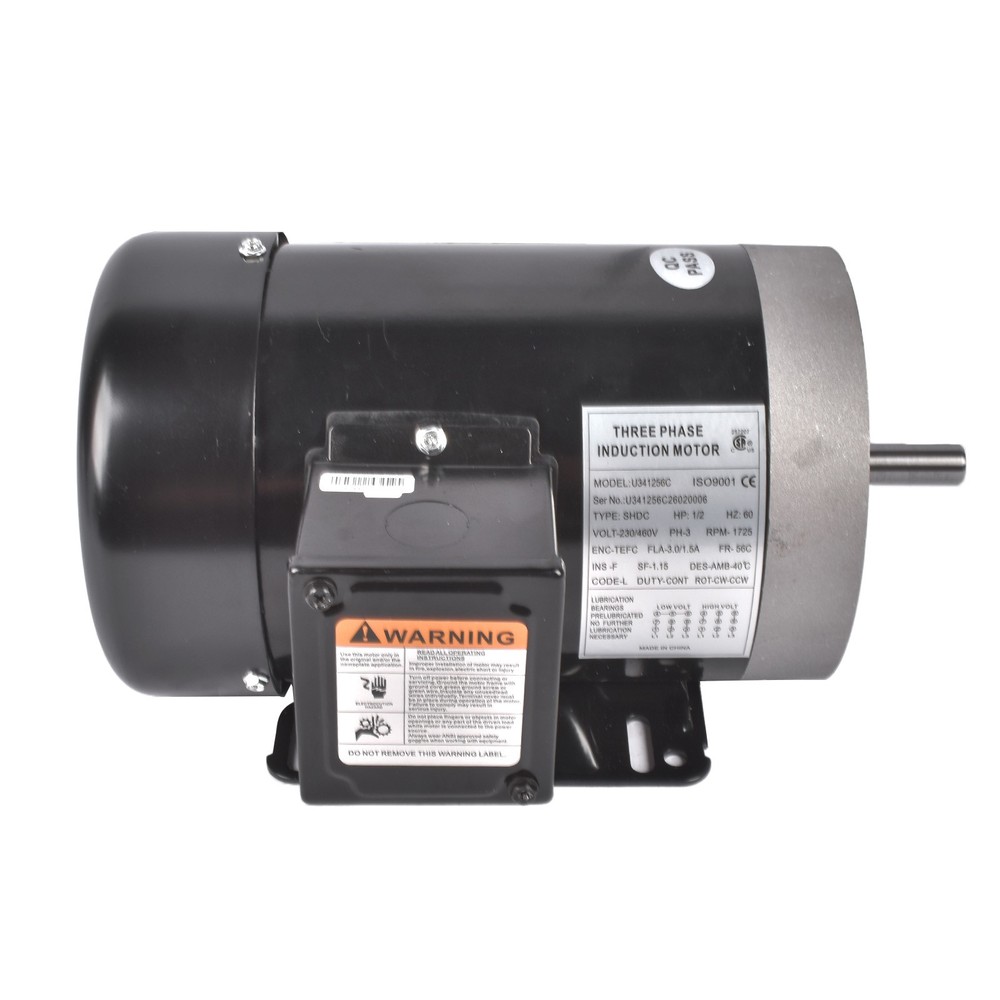

MA0505E AC Motor w/Foot 1/2 HP, 1725RPM, 3PH/60Hz, 56C/TEFC, 206-230/460V

USD 142.50 USD

SKU: 75rbOPo5

Brand: OE quality

GTIN: Does not apply

Condition: New

Tags: 1.15 1/2" 1725 RPM 2 years 230/460 V 26 lbs. 460 V, 208 V, 230 V 5/8 in 60 Hz AC Motor Brake Motor Direct Replacement Dust Protected F (Max 311°F) Induction/Asynchronous Inverter Duty IP03 MA0505E OE Quality Permanent Magnet Reversible Straight Three Phase

Categories: Metalworking Equipment

Specifications

Brand	OE quality
Rated Load (HP)	1/2
AC Phase	Three Phase
Nominal Rated Input Voltage	460 V, 208 V, 230 V
Service Factor	1.15
Special Motor Construction	Brake Motor
Shaft Diameter	5/8 in
AC Motor Type	Induction/Asynchronous
AC Frequency Rating	60 Hz
DC Stator/Winding Type	Permanent Magnet
Reversible/Non-Reversible	Reversible
Inverter/Vector Duty Rating	Inverter Duty
Shaft Type	Straight
IP Rating	IP03
Insulation Class	F (Max 311°F)
Base RPM	1725 RPM
Protection Against Solids	Dust Protected
Manufacturer Part Number	MA0505E
Type	AC Motor
Fitment Type	Direct Replacement
Manufacturer Warranty	2 Years
Package Weight	26 lbs.

1x MA0505E AC Motor (As Pics Shown). Dual mounting with NEMA 56C and removable base. Enclosure: TEFC. Totally Enclosed Fan Cooled (TEFC) enclosure. Removable base / bolt-on/bolt-off mounting feet. High tensile strength steel shaft.

MA0505E AC Motor w/Foot 1/2 HP, 1725RPM, 3PH/60Hz, 56C/TEFC, 206-230/460V
