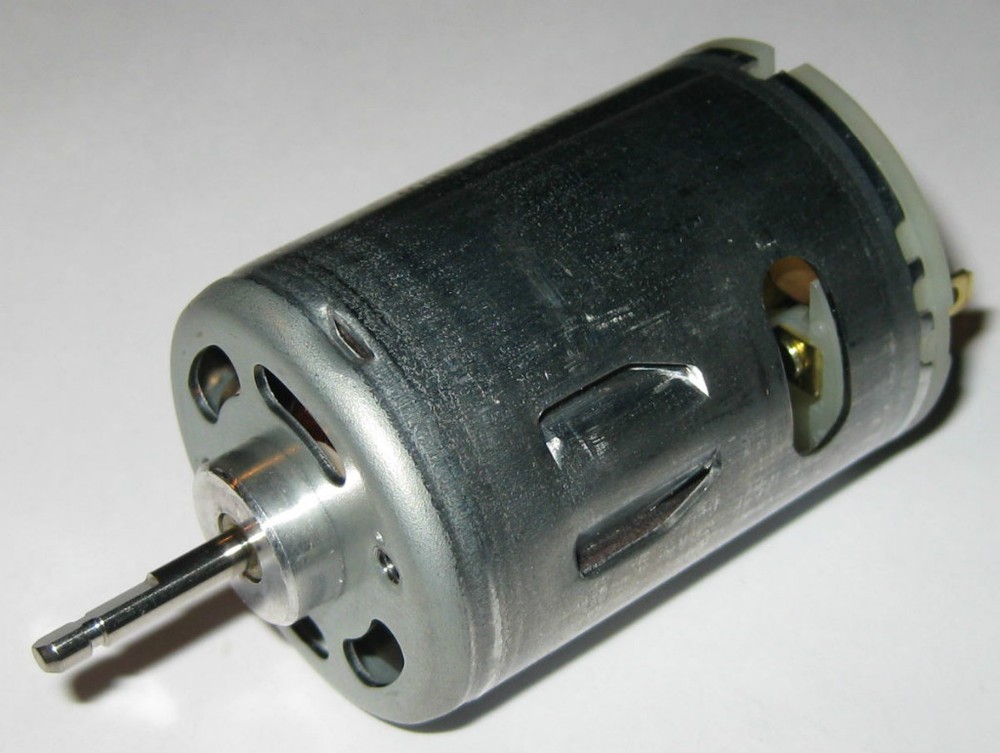

Mabuchi 12V Motor – RS-545SH – Vibrator / Massager / Vacuum Motor – 7130 RPM
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 1.53 A |
| MPN | RS-545SH-3045 |
| Actual Rated Input Voltage | 12 V |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | "D" Profile |
| Nominal Rated Input Voltage | 12 V |
| Model | RS-545SH |
| Starting/Locked Rotor Torque | 972.9 g-cm |
| Reversible/Non-Reversible | Reversible |
| Rated/Full-Load Torque | 175.3 g-cm |
| Shaft Diameter | 3.17 mm |
| Base RPM | 8700 RPM |
| Brand | Mabuchi |
Mabuchi 12V Motor - RS-545SH - Vibrator / Massager / Vacuum Motor - 7130 RPM Electric DC motor produced by Mabuchi Model: RS-545SH-3045 Operates on 5 - 15 VDC (12V Nominal) No load speed: 8,700 RPM No load current: 340 mA Full load (maximum efficiency @ 12VDC) performance characteristics: Speed: 7,130 RPM Current: 1533 mA Torque: 175.3 g-cm (17.18 mN-m) Power output: 11.2 Watts 7.0 A stall current @ 12 V Stall torque 972.9 g-cm (95.35 mN-m) 5 pole armature Can be operated in either direction, simply reverse power supply polarity Dimensions (not including shaft): 50 mm long x 36 mm diameter D-Type shaft dimensions: 16 mm long x 3.17 mm diameter Weight: 5.2 oz. (147 g) Comes with solder eyelets for power connection Two threaded (M3-0.5) mounting holes on 25 mm centers on drive end These motors are used in hair dryers, vibrators, vacuum cleaners, massagers, etc.
